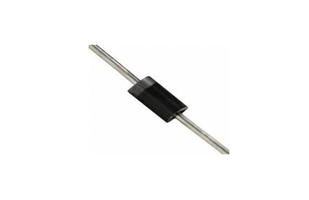

1N5406 The 1N5406 is a standard recovery rectifier diode from GS with a 3A current rating and 600V reverse voltage. It is housed in a DO-201AD package.
Mfr Part #:

1N5406

Available from 1 distributors
Mfr Name: GS
GS
The 1N5406 is a standard recovery rectifier diode from GS with a 3A current rating and 600V reverse voltage. It is housed in a DO-201AD package.
✓ Total Stock: 6 pcs
$ Price Range: $0.99

1N5406 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N5406 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Diameter
Forward Current
Height
Length
Mounting Type
Operating Temperature
Output Current
Power Dissipation
Supplier Device Package
Weight
Width
View Similar Products (0)

1N5406 Description

Short technical summary and product information.

The 1N5406 is a general-purpose rectifier diode designed for standard recovery applications. It offers a high current capability of 3A and a maximum reverse voltage of 600V.



Key electrical characteristics include a low forward voltage drop of 1.2V at 3A and a reverse leakage current of 5μA at 600V. The diode has a standard recovery time greater than 500ns.



This component is packaged in a DO-201AD axial package, suitable for through-hole mounting. It operates within a junction temperature range of -55°C to 150°C and has a power dissipation rating of 6.25W.



The 1N5406 is suitable for various power supply and general rectification applications where standard recovery performance is required.

1N5406 Quick Information

Product Type: Standard Recovery Rectifier Diode
Canonical Name: 1N5406 Standard Recovery Rectifier Diode
Subcategory: Rectifier

1N5406 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1N5406 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N5406 Features

  • 3A average rectified current rating.
  • 600V maximum reverse voltage.
  • Low 1.2V forward voltage drop.
  • DO-201AD axial package.
  • Standard recovery time.

1N5406 Applications

  • Suitable for high-voltage rectification applications.
  • Used in power supply and inverter circuits.
  • Ideal for general-purpose diode rectification tasks.
  • Applicable in industrial and consumer electronic devices.

1N5406 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage for the 1N5406 diode?

The maximum reverse voltage for the 1N5406 diode is 600V.

What is the average rectified current of the 1N5406 diode?

The 1N5406 diode has an average rectified current of 3A.

What is the forward voltage drop of the 1N5406 diode at 3A?

The maximum forward voltage drop for the 1N5406 diode at 3A is 1.2V.

What is the operating temperature range for the 1N5406 diode?

The 1N5406 diode operates within a junction temperature range of -55°C to 150°C.

What type of package is the 1N5406 diode supplied in?

The 1N5406 diode is supplied in a DO-201AD axial package.
