| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Impedance | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tolerance |

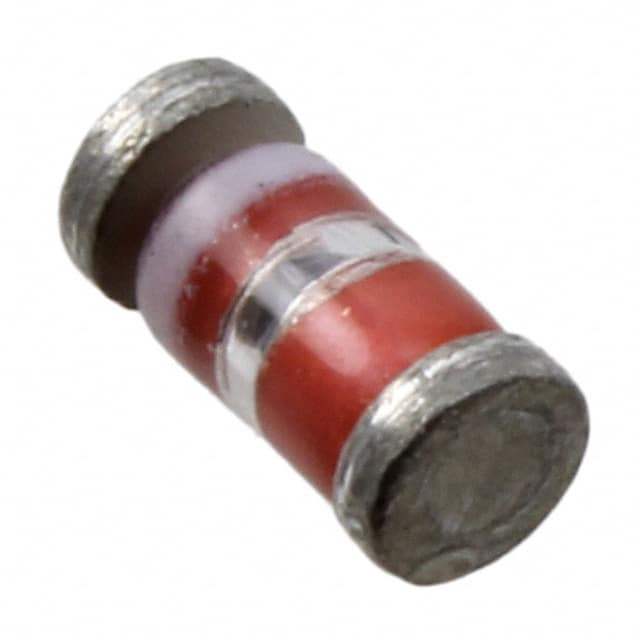

The 1N5230BUR-1 from Microsemi Corporation is a single Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 4.7V with a tolerance of ±5%. The diode has a maximum power dissipation of 500mW and a maximum forward voltage of 1.5V at 200mA.
This component is suitable for surface mounting, utilizing the DO-213AA package. The operating temperature range is from -65°C to 175°C. Its impedance is rated at a maximum of 19 Ohms, with a reverse leakage current of 50 µA at 2V.
Key electrical characteristics include a 4.7V Zener voltage and a 500mW power rating. The surface mount package facilitates integration into various electronic circuits. The wide operating temperature range ensures reliability in diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 4.7 V.
The maximum power dissipation is 500 mW.
The voltage tolerance is ±5%.
The operating temperature range is -65°C to 175°C.
It is supplied in a DO-213AA (Glass) package for surface mounting.
