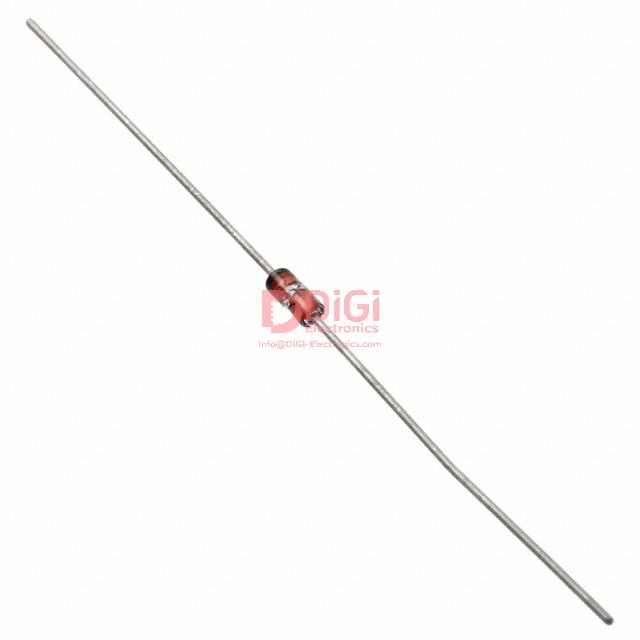

1N5230B The Microchip Technology 1N5230B is a Zener Diode with a nominal voltage of 4.7V and a power rating of 500mW. It features a ±5% tolerance and is available in a Through Hole DO-35 package.
Mfr Part #:

1N5230B

Available from 1 distributors
Mfr Name: TH T/R
TH T/R
The Microchip Technology 1N5230B is a Zener Diode with a nominal voltage of 4.7V and a power rating of 500mW. It features a ±5% tolerance and is available in a Through Hole DO-35 package.
✓ Total Stock: 5,000 pcs
$ Price Range: $0.99

1N5230B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N5230B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Impedance
Mounting Type
Operating Temperature
Power Dissipation
Supplier Device Package
Tolerance
View Similar Products (0)

1N5230B Description

Short technical summary and product information.

The 1N5230B from Microchip Technology is a Zener Diode designed for voltage regulation applications. It offers a nominal Zener voltage of 4.7V with a tight tolerance of ±5%. The diode has a maximum power dissipation of 500mW, making it suitable for various electronic circuits.



This component features a low reverse leakage current of 50 µA at 2V and a maximum forward voltage of 1.5V at 200mA. The operating temperature range is from -65°C to 175°C (TJ). The impedance at the Zener test current (Izt) is a maximum of 19 Ohms.



The 1N5230B is packaged in a DO-35 (DO-204AH) case and is designed for through-hole mounting. It is supplied in tape and reel packaging (TR).



This Zener diode is a reliable choice for applications requiring stable voltage references or simple voltage regulation.

1N5230B Quick Information

Product Type: Zener Diode
Canonical Name: 1N5230B Zener Diode
Subcategory: Zener Diode

1N5230B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1N5230B Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N5230B Features

  • Nominal Zener voltage of 4.7V
  • 500mW maximum power dissipation
  • ±5% voltage tolerance
  • Through hole mounting package
  • Operating temperature range -65°C to 175°C

1N5230B Applications

  • Used in voltage regulation circuits
  • Suitable for surge suppression
  • Ideal for voltage reference applications
  • Mounted in axial DO-35 package

1N5230B FAQs

5 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the 1N5230B?

The nominal Zener voltage is 4.7 V.

What is the power rating of the 1N5230B?

The maximum power dissipation is 500 mW.

What is the tolerance of the 1N5230B?

The tolerance is ±5%.

What is the operating temperature range for the 1N5230B?

The operating temperature range is -65°C to 175°C (TJ).

What type of package is the 1N5230B in?

The package is DO-35 (DO-204AH), designed for through-hole mounting.
