| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tolerance |

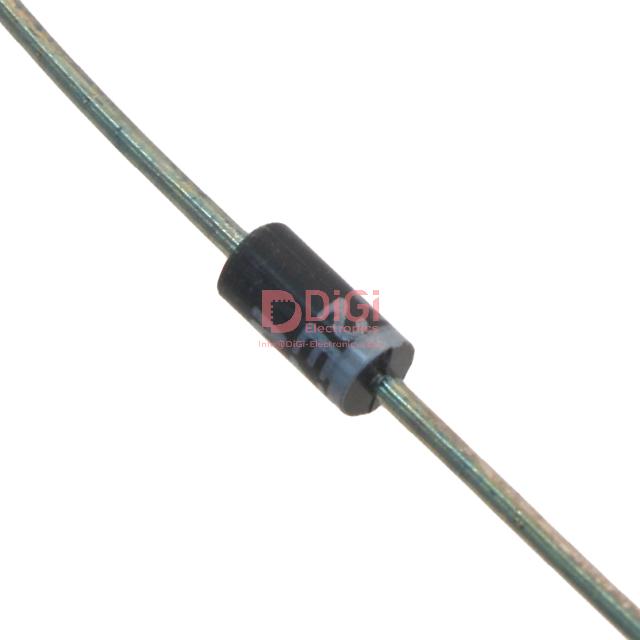

The Microsemi Corporation 2EZ91D5E3/TR12 is a single Zener diode designed for voltage regulation applications. It features a nominal Zener voltage of 91V with a tolerance of ±5%. The diode has a maximum power dissipation rating of 2W and a maximum Zener impedance of 125 Ohms at the specified test current.
Electrical characteristics include a maximum forward voltage of 1.2V at 200mA and a reverse leakage current of 500 nA at 69.2V. The operating temperature range for this component is -65°C to 150°C.
This Zener diode is packaged in a DO-204AL (DO-41) case and is intended for through-hole mounting. The supplier device package is also specified as DO-204AL (DO-41).
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. However, these compliance details are noted as having low confidence and require verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 91V.
The maximum power dissipation is 2W.
The tolerance is ±5%.
The operating temperature range is -65°C to 150°C.
It is designed for through-hole mounting.
The package is DO-204AL, DO-41, Axial.
