| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,417 pcs
|
5417 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance |

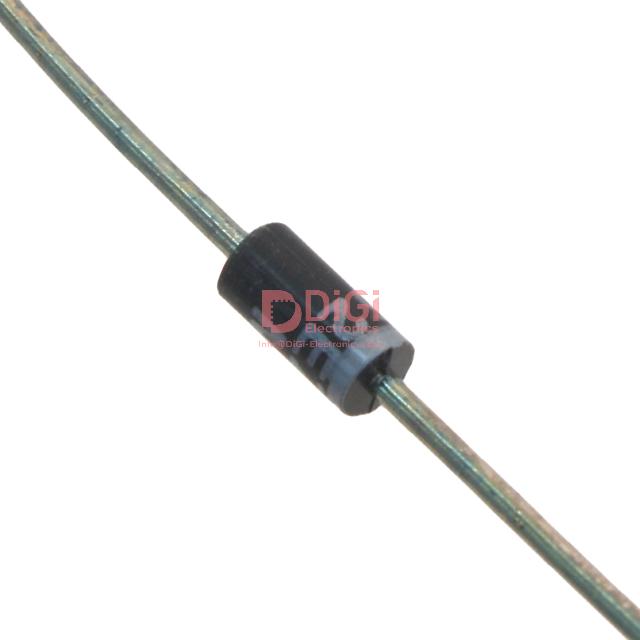

The 1N4746A from STMicroelectronics is a Zener Diode designed for voltage regulation applications. It offers a nominal Zener voltage of 18V with a tight tolerance of ±5%, ensuring stable output voltage.
This diode has a maximum power dissipation of 1W, making it suitable for various power supply and signal conditioning circuits. The impedance at the test current is a maximum of 20 Ohms, and the reverse leakage current is typically 5 µA at 13.7V. The forward voltage is a maximum of 1.2V at 200 mA.
Packaged in a DO-204AL (DO-41) axial package, the 1N4746A is designed for through-hole mounting. It operates within a temperature range of -65°C to 150°C. The component is RoHS3 compliant, with REACH unaffected status and an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 18 V.
The maximum power dissipation is 1 W.
The tolerance is ±5%.
It is in a DO-204AL, DO-41, Axial package.
It is mounted using the through-hole method.
