| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,468 pcs
|
4468 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Tolerance |

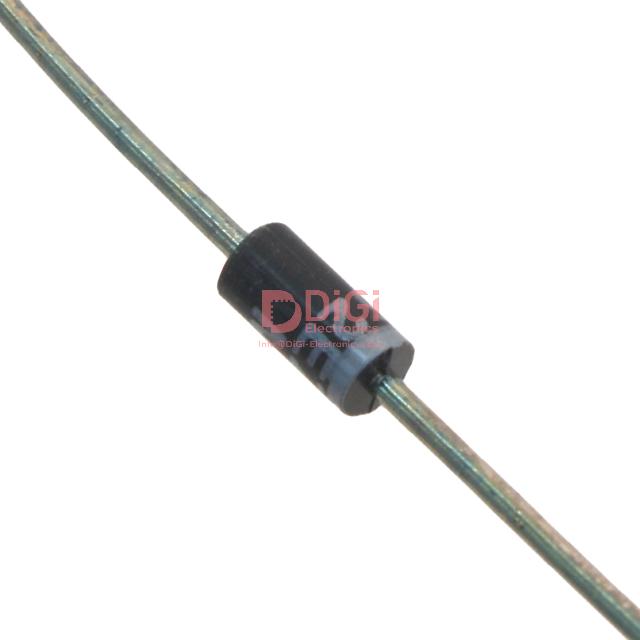

The 1N4739 from Microsemi Corporation is a Zener Diode designed for voltage regulation applications. It features a nominal Zener voltage of 9.1V with a tolerance of ±10%, ensuring stable voltage output. The diode has a maximum power dissipation of 1W and an impedance of 5 Ohms at its test condition.
This Zener Diode operates within a temperature range of -65°C to 175°C. It has a low reverse leakage current of 10 µA at 7V and a forward voltage of 1.2V at 200 mA. The component is designed for through-hole mounting and comes in a DO-204AL (DO-41) axial package.
Key electrical characteristics include a 9.1V Zener voltage and 1W power rating. The ±10% tolerance makes it suitable for applications requiring precise voltage regulation. Its operating temperature range and robust package make it reliable for various electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage of the 1N4739 is 9.1V.
The maximum power dissipation for the 1N4739 is 1W.
The tolerance of the 1N4739 Zener Diode is ±10%.
The operating temperature range for the 1N4739 is -65°C to 175°C.
The 1N4739 is available in a DO-204AL, DO-41, Axial package.
