| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,000 pcs
|
25000 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| SVHC Present | |
| Tape & Reel | |
| Tolerance |
The 1N4735A-TR from Vishay General Semiconductor - Diodes Division is a Zener diode designed for various electronic applications. It offers a precise Zener voltage of 6.2V with a tolerance of ±5%, ensuring stable voltage regulation.
With a maximum power dissipation of 1.3W, this component is suitable for moderate power applications. The diode exhibits a low reverse leakage current of 10 µA at 3V and a maximum forward voltage of 1.2V at 200 mA. Its operating temperature range extends up to 175°C (TJ).

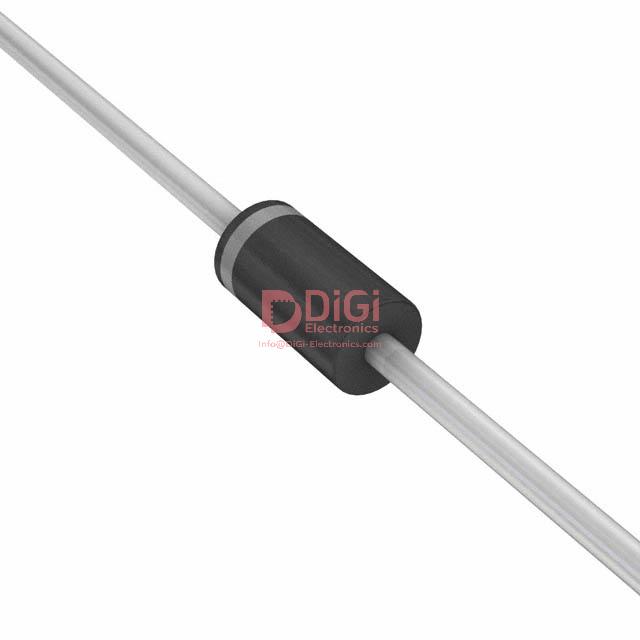

The 1N4735A-TR is packaged in a DO-204AL (DO-41) case and utilizes a through-hole mounting type, making it convenient for integration into circuit boards. The component is qualified to AEC-Q101 standards, indicating its suitability for automotive applications.
This Zener diode is supplied in Cut Tape (CT) packaging, facilitating efficient handling and assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 6.2 V.
The maximum power dissipation is 1.3 W.
The tolerance is ±5%.
The maximum Zener impedance is 2 Ohms.
The reverse leakage current is 10 µA @ 3 V.
The maximum forward voltage is 1.2 V @ 200 mA.
The operating temperature is up to 175°C (TJ).
