Mfr Part #:

1N4733A-G_AY_10001

Mfr Name: PANJIT

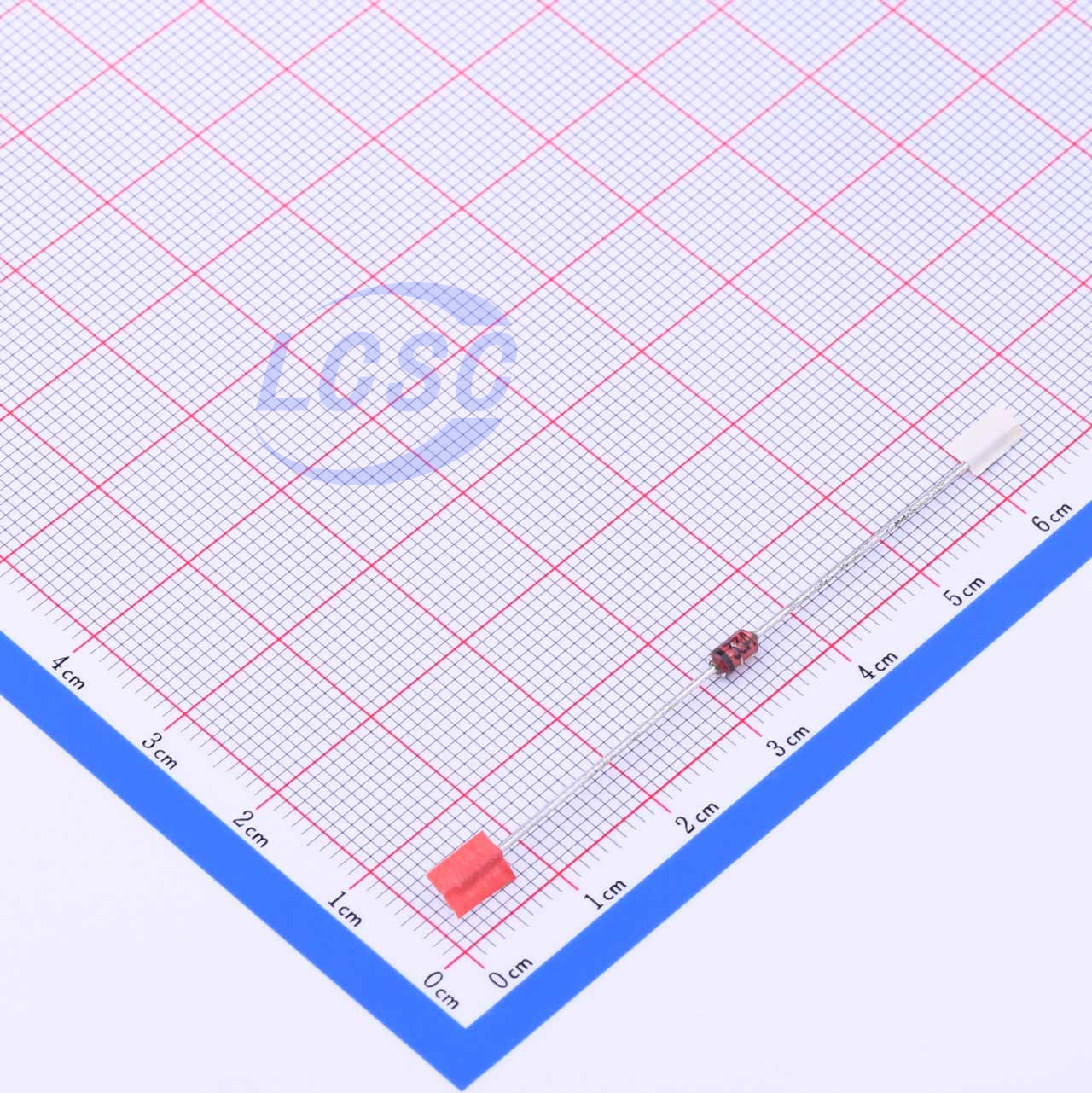

The PANJIT 1N4733A-G_AY_10001 is a Zener Diode with a 5.1V Zener voltage and 1W power dissipation. It features a tolerance of 5% and comes in a standard package of 2500 pieces.

✓ Total Stock: 4,240 pcs

$ Price Range: $0.03

1N4733A-G_AY_10001 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	4,240 pcs On Request	4240 pcs	On Request	1	On Request	On Request	53+	On Request	On Request

1N4733A-G_AY_10001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	PANJIT
Power Dissipation	1W
SVHC Present	Not Present
Tolerance	±5%

View Similar Products (0)

1N4733A-G_AY_10001 Description

Short technical summary and product information.

The PANJIT 1N4733A-G_AY_10001 is a single Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 5.1V at a test current of 20mA, with a power dissipation rating of 1W. The diode has a tolerance of 5%, ensuring precise voltage regulation.

This component is supplied in a standard package of 2500 pieces, suitable for bulk purchasing and automated assembly processes. Its specifications make it a reliable choice for various electronic circuits requiring stable voltage references.

While specific details on mounting type and package case are not provided, Zener diodes of this nature are typically used in through-hole or surface-mount configurations depending on the specific variant. The RoHS, REACH, and MSL compliance status are noted as 'unverified' from the existing database, suggesting a need for verification with official documentation for critical applications.

1N4733A-G_AY_10001 Quick Information

Product Type: Zener Diode

Canonical Name: PANJIT 1N4733A-G_AY_10001 Zener Diode

Subcategory: Diodes - Zener - Single

1N4733A-G_AY_10001 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

1N4733A-G_AY_10001 Estimated Pricing

Qty	Low	High
1+	$0.03	$0.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N4733A-G_AY_10001 Features

5.1V nominal Zener voltage
1W power dissipation rating
±5% voltage tolerance
Standard package of 2500 pcs

1N4733A-G_AY_10001 Applications

Voltage regulation in power supplies.
Overvoltage protection circuits.
Voltage reference generation.
Clamping circuits.

1N4733A-G_AY_10001 FAQs

4 frequently asked questions generated from this part’s specifications.

What is the Zener voltage of the 1N4733A-G_AY_10001?

The nominal Zener voltage is 5.1V when tested at 20mA.

What is the power dissipation for the 1N4733A-G_AY_10001?

The power dissipation is 1W.

What is the tolerance of the 1N4733A-G_AY_10001 Zener Diode?

The tolerance is 5%.

How many pieces are in the standard package for the 1N4733A-G_AY_10001?

The standard package quantity is 2500 pieces.

1N4733A-G_AY_10001 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

BZX85C12TR5K

On Semiconductor

The ON Semiconductor BZX85C12TR5K is a Zener diode with a nominal Zener voltage of 12V and a power dissipation of 1W. It features a tolerance of ±5% and is housed in a DO-204AL (DO-41) package.

View Part

JANTX1N3036B-1

Microsemi Corporation

The Microsemi JANTX1N3036B-1 is a Zener Diode with a nominal voltage rating of 47V and a power dissipation of 1W. It is supplied in a DO-204AL/DO-41 through-hole package.
