| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Dynamic Impedance (Zzt) | |
| Forward Voltage | |
| Impedance (Max) (Zzt) | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power | |
| Power Dissipation | |
| Reverse Leakage Current | |
| Solder Temperature | |
| Supplier Device Package | |
| Thermal Resistance Junction-to-Ambient | |
| Tolerance | |
| Voltage | |
| Zener Voltage Tolerance |

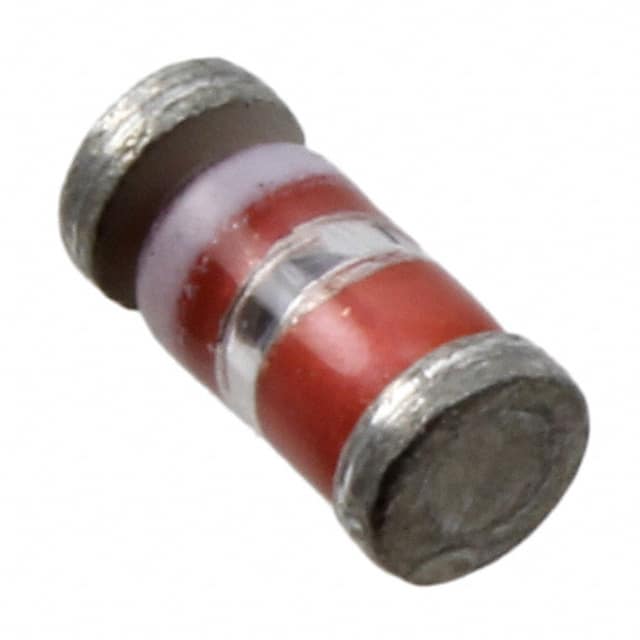

The 1N4620UR-1 is a 500 mW Zener voltage regulator diode from Microchip Technology, part of the 1N4614UR-1 through 1N4627UR-1 series. It is designed for surface mount applications in the hermetically sealed glass DO-213AA package.
Key electrical characteristics include a forward voltage of 1.1V at 200 mA, reverse leakage current of 7.5 µA at 1.5V, and dynamic impedance of 1650Ω. The device has a power dissipation of 500 mW and operates over a temperature range of -65°C to 175°C.
This Zener diode offers a ±5% voltage tolerance and is suitable for voltage regulation circuits. The DO-213AA package allows for reliable surface mounting and is compatible with standard reflow soldering processes. The device is also available in axial-lead DO-35 and tabbed DO-216 packages as alternate options.
For high-reliability applications, the series is qualified to MIL-PRF-19500/435 levels including JAN, JANTX, JANTXV, and JANS. The part is available in RoHS compliant versions (commercial grade) as per the datasheet.
1.1V at 200 mA.
DO-213AA (glass) surface mount package.
500 mW.
7.5 µA at 1.5V.
1650 Ω.
-65°C to 175°C.
Surface mount.
