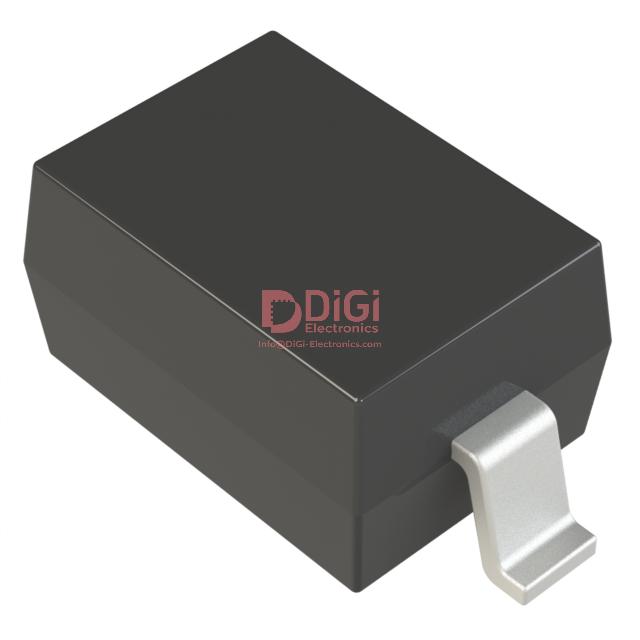

1N4148W7 The Diodes Incorporated 1N4148W7 is a small signal diode designed for general-purpose applications. It features a 100V reverse voltage rating and a 150mA average rectified current.
Mfr Part #:

1N4148W7

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated 1N4148W7 is a small signal diode designed for general-purpose applications. It features a 100V reverse voltage rating and a 150mA average rectified current.
✓ Total Stock: 40 pcs
$ Price Range: $0.99

1N4148W7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N4148W7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Mounting Type
Reverse Recovery Time (trr)
Speed
Supplier Device Package
View Similar Products (0)

1N4148W7 Description

Short technical summary and product information.

The 1N4148W7 from Diodes Incorporated is a small signal diode suitable for various electronic applications. It offers a maximum reverse voltage of 100V and an average rectified current of 150mA.



Key electrical characteristics include a maximum forward voltage of 1.25V at 150mA and a fast reverse recovery time of 4ns. The diode also exhibits a low reverse leakage current of 1µA at 75V and a capacitance of 2pF at 0V and 1MHz.



This component is housed in a surface-mount SOD-123F package, making it convenient for automated assembly processes. The operating junction temperature range is from -65°C to 150°C, providing robustness for different environmental conditions.

1N4148W7 Quick Information

Product Type: Small Signal Diode
Series: 1N4148W
Canonical Name: 1N4148W-7 Small Signal Diode
Subcategory: Rectifier

1N4148W7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1N4148W7 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N4148W7 Features

  • 100V maximum reverse voltage rating.
  • 150mA average rectified current.
  • Fast 4ns reverse recovery time.
  • Surface mount SOD-123F package.
  • Wide -65°C to 150°C operating temperature.

1N4148W7 Applications

  • Used in high-speed switching circuits.
  • Suitable for general purpose rectification.
  • Ideal for signal conditioning applications.
  • Applicable in power management modules.

1N4148W7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the 1N4148W7?

100V.

What is the average rectified current rating?

150mA.

What is the forward voltage at 150mA?

1.25V maximum.

What is the reverse recovery time?

4ns.

What is the package type?

SOD-123F (supplier device package SOD-123).

What is the operating junction temperature range?

-65°C to 150°C.

What is the junction capacitance?

2pF at 0V and 1MHz.
