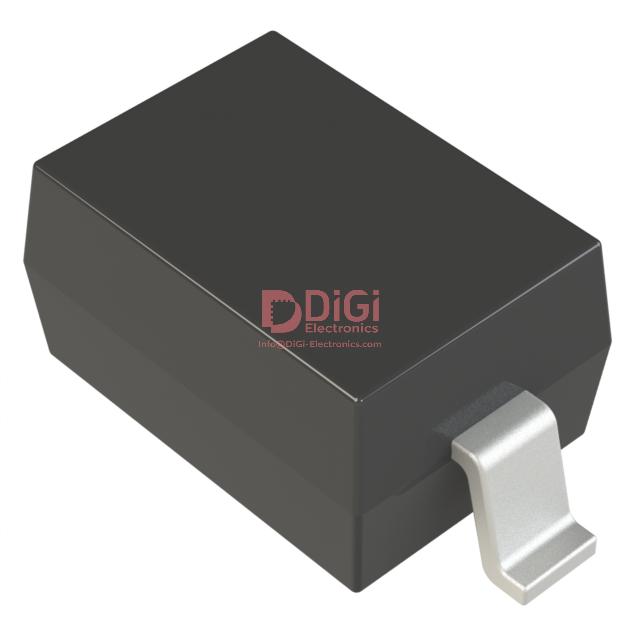

1N4148W The Diodes Incorporated 1N4148W-13-F is a rectifier diode designed for general-purpose applications. It features a 100V reverse voltage rating and 300mA average rectified current.
Mfr Part #:

1N4148W

Available from 1 distributors
Mfr Name: Lite-On Inc.
Lite-On Inc.
The Diodes Incorporated 1N4148W-13-F is a rectifier diode designed for general-purpose applications. It features a 100V reverse voltage rating and 300mA average rectified current.
✓ Total Stock: 75 pcs
$ Price Range: $0.44

1N4148W Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N4148W Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Lead Style
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Storage Temperature
Supplier Device Package
View Similar Products (0)

1N4148W Description

Short technical summary and product information.

The 1N4148W-13-F from Diodes Incorporated is a general-purpose rectifier diode. It is housed in a compact SOD-123 surface mount package, making it suitable for space-constrained designs.



This diode offers a maximum reverse voltage of 100V and an average rectified current of 300mA. Its fast recovery time of 4ns ensures efficient operation in switching applications. The forward voltage is a maximum of 1.25V at 150mA, with a low reverse leakage current of 1µA at 100V.



The diode operates at a typical capacitance of 2pF at 0V and 1MHz. It is designed for surface mounting, providing a convenient solution for automated assembly processes. The operating temperature is specified for the junction.

1N4148W Quick Information

Product Type: Rectifier Diode
Canonical Name: 1N4148W-13-F Rectifier Diode
Subcategory: Rectifier

1N4148W Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1N4148W Estimated Pricing

Qty Low High
1+ $0.44 $0.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N4148W Features

  • 100V maximum reverse voltage.
  • 300mA average rectified current.
  • Fast recovery time of 4ns.
  • Surface mount SOD-123 package.
  • Low reverse leakage current.

1N4148W Applications

  • Suitable for high-speed switching circuits.
  • Used in general purpose rectification.
  • Ideal for compact electronic designs.
  • Applicable in various power management.
  • Integrated into small form factor devices.

1N4148W FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage for the 1N4148W diode?

The maximum DC reverse voltage (Vr) for the 1N4148W diode is 100V.

What is the average rectified current of the 1N4148W?

The average rectified current (Io) for the 1N4148W is 300mA.

What is the forward voltage of the 1N4148W diode?

The maximum forward voltage (Vf) for the 1N4148W diode is 1.25V when measured at 150mA.

What is the reverse recovery time of the 1N4148W?

The typical reverse recovery time (trr) for the 1N4148W is 4ns.

What is the package type for the 1N4148W diode?

The 1N4148W diode is supplied in a SOD-123 package.

What is the typical reverse leakage current for the 1N4148W?

The typical reverse leakage current for the 1N4148W is 1µA at 100V.

What is the capacitance of the 1N4148W diode?

The typical capacitance of the 1N4148W diode is 2pF at 0V and 1MHz.
