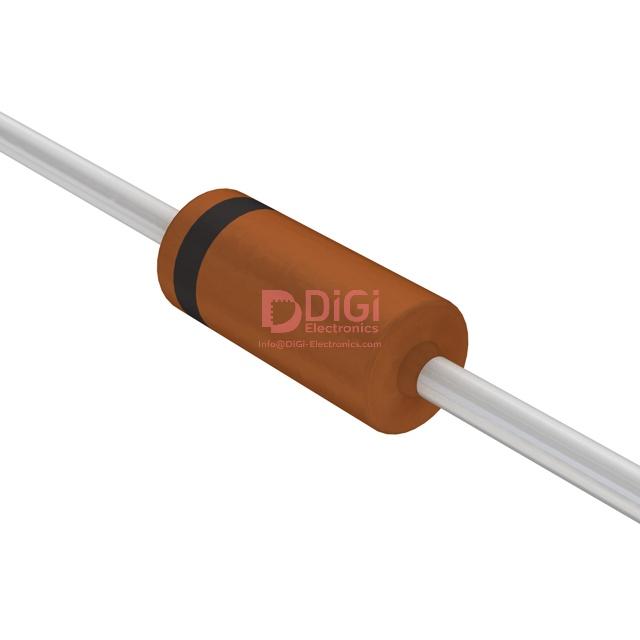

1N4148 The 1N4148 is a fast switching diode from Diodes Incorporated. It offers a 100V reverse voltage and a 300mA forward current in a DO-35 package.
Mfr Part #:

1N4148

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The 1N4148 is a fast switching diode from Diodes Incorporated. It offers a 100V reverse voltage and a 300mA forward current in a DO-35 package.
✓ Total Stock: 7,050 pcs
$ Price Range: $0.99

1N4148 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
3,550 pcs
On Request
3550 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N4148 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Diode Capacitance
Forward Voltage
Junction Temperature
Lead Style
Mounting Type
Peak Forward Surge Current
Reverse Voltage
Storage Temperature
Supplier Device Package
View Similar Products (0)

1N4148 Description

Short technical summary and product information.

The 1N4148 is a silicon epitaxial planar diode designed for extreme fast switching applications. It features a repetitive peak reverse voltage of 100V and a forward continuous current of 300mA.



With a typical forward voltage of 1V at 10mA and a reverse recovery time as low as 4ns, this diode is suitable for high-speed switching circuits. The DO-35 (DO-204AH) package allows for through-hole mounting.



Key electrical characteristics include a maximum forward voltage of 1V at 10mA, a maximum reverse leakage current of 25nA at 20V, and a diode capacitance of 4pF at 0V and 1MHz. The junction temperature can reach up to 175°C.



This diode is electrically equivalent to the 1N914 and is available in tape and reel or ammopack packaging options.

1N4148 Quick Information

Product Type: Diode
Canonical Name: 1N4148 Fast Switching Diode
Subcategory: Switching Diode

1N4148 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1N4148 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N4148 Features

  • Fast switching silicon epitaxial planar diode.
  • 100V repetitive peak reverse voltage.
  • 300mA forward continuous current.
  • Low reverse recovery time of 4ns.
  • DO-35 (DO-204AH) axial package.

1N4148 Applications

  • High-speed switching circuits.
  • General purpose rectification.
  • Signal detection and clipping.
  • Voltage clamping and protection.

1N4148 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive peak reverse voltage of the 1N4148?

100V

What is the package type of the 1N4148?

DO-35 (DO-204AH) axial through-hole package.

What is the maximum junction temperature?

175°C

What is the typical forward voltage at 10mA?

1V

What is the reverse recovery time?

4ns (test condition: IF=10mA, VR=6V, iR=0.1xIR, RL=100Ω)

What is the storage temperature range?

-65°C to +150°C

What is the diode capacitance?

4pF (typical at VR=0V, f=1MHz, VHF=50mV)
