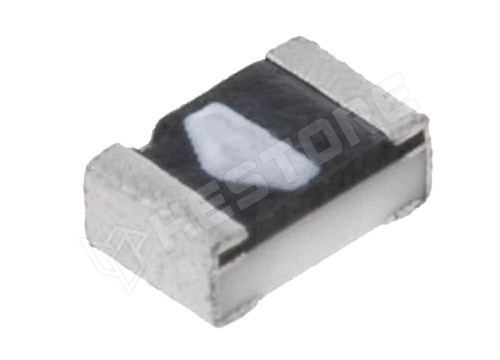

1N4148-0805 The 1N4148-0805 is a switching diode from Guangdong Hottech Industrrial Co. It features a 75V maximum off-state voltage and 150mA load current.
Mfr Part #:

1N4148-0805

Available from 1 distributors
Mfr Name: Guangdong Hottech Industrrial Co
Guangdong Hottech Industrrial Co
The 1N4148-0805 is a switching diode from Guangdong Hottech Industrrial Co. It features a 75V maximum off-state voltage and 150mA load current.
✓ Total Stock: 7,241 pcs
$ Price Range: $0.99

1N4148-0805 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
7,241 pcs
On Request
7241 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1N4148-0805 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Halogen Free
Lead Style
Load Current
Mounting Type
Reverse Recovery Time
SVHC Present
View Similar Products (0)

1N4148-0805 Description

Short technical summary and product information.

This 1N4148-0805 is a single switching diode manufactured by Guangdong Hottech Industrrial Co. It is designed for surface mount (SMD) applications and comes in an 0805 package.



Key electrical specifications include a maximum off-state voltage of 75V and a continuous load current rating of 150mA (0.15A), with a maximum surge current of 500mA. The diode exhibits a fast switching characteristic with a reverse recovery time of 4ns. The maximum forward voltage is 1V.



This component is suitable for various electronic circuits requiring fast switching diodes. Its SMD package facilitates automated assembly processes.

1N4148-0805 Quick Information

Product Type: Switching Diode
Canonical Name: 1N4148-0805 Switching Diode
Subcategory: Rectifier

1N4148-0805 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1N4148-0805 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N4148-0805 Features

  • Switching diode for fast applications.
  • 75V maximum off-state voltage.
  • 150mA continuous load current.
  • 4ns reverse recovery time.
  • 0805 surface mount package.

1N4148-0805 Applications

  • High-speed switching in digital circuits.
  • Signal demodulation in communication systems.
  • Reverse voltage protection for sensitive components.
  • General purpose switching in SMD designs.

1N4148-0805 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the reverse voltage rating?

75V

What is the forward current rating?

150mA, with a maximum of 500mA

What is the forward voltage?

1V typical

What is the reverse recovery time?

4ns

What is the package type?

0805 SMD (Surface Mount)

What is the surge current rating?

500mA
