Mfr Part #:

1N4005T

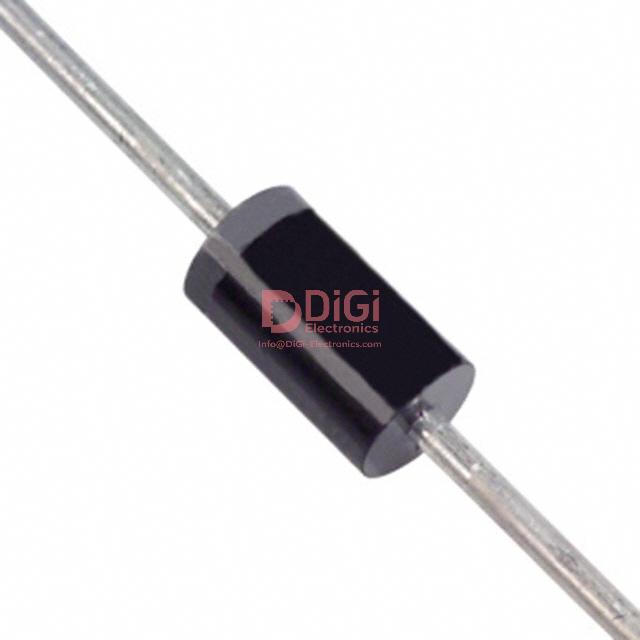

The Diodes Incorporated 1N4005T is a general-purpose rectifier diode with a 600V reverse voltage rating and 1A average rectified current. It features a standard recovery speed and is housed in a through-hole DO-41 package.

✓ Total Stock: 5,036 pcs

$ Price Range: $0.99

1N4005T Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	5,000 pcs On Request	5000 pcs	On Request	1	On Request	On Request	1008	On Request	On Request
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	36 pcs On Request	36 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1N4005T Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Diodes Incorporated
Capacitance	8pF @ 4V, 1MHz
Lead Spacing	2.54 mm
Mounting Type	Through Hole
Reverse Recovery Time	>500ns
Supplier Device Package	DO-41
Tape & Reel	No

View Similar Products (0)

1N4005T Description

Short technical summary and product information.

The 1N4005T from Diodes Incorporated is a general-purpose rectifier diode designed for various electronic applications. It offers a maximum reverse voltage of 600V and can handle an average rectified current of 1A. The diode has a standard recovery time exceeding 500ns.

This component is suitable for applications requiring a reliable rectifier with a moderate voltage and current handling capability. Its forward voltage drop is typically 1V at 1A, and it exhibits a low reverse leakage current of 5µA at 600V. The capacitance is rated at 8pF at 4V and 1MHz.

The 1N4005T is mounted via a through-hole method and comes in a DO-41 axial package. It operates within a junction temperature range of -65°C to 150°C, making it suitable for a wide array of environmental conditions. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.

1N4005T Quick Information

Product Type: Rectifier Diode

Canonical Name: 1N4005-T Rectifier Diode

Subcategory: Rectifier

1N4005T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1N4005T Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N4005T Features

600V maximum reverse voltage rating.
1A average rectified current capability.
Standard recovery time over 500ns.
Through-hole DO-41 axial package.
Wide operating temperature range.

1N4005T Applications

General purpose rectification applications.
Power supply input rectification.
AC to DC conversion circuits.
Voltage clamping and protection.

1N4005T FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum reverse voltage for the 1N4005T?

The maximum reverse voltage (Vr) for the 1N4005T is 600V.

What is the average rectified current rating of the 1N4005T?

The 1N4005T has an average rectified current (Io) rating of 1A.

What is the forward voltage drop of the 1N4005T at 1A?

The maximum forward voltage (Vf) for the 1N4005T at 1A is 1V.

What is the package type for the 1N4005T?

The 1N4005T is supplied in a DO-41 axial package and is designed for through-hole mounting.

What is the operating temperature range for the 1N4005T?

The 1N4005T operates within a junction temperature range of -65°C to 150°C.
