| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Reverse Recovery Time | |
| Storage Temperature |
The 1N4004L is a widely used rectifier diode manufactured by Lite-On Inc., part of the 1N400x series. It is designed for applications requiring efficient AC to DC conversion and voltage protection.
Key electrical specifications include a maximum repetitive peak reverse voltage of 400V and an average forward current rating of 1A. The diode exhibits a typical forward voltage drop of 1.1V at 1A and a reverse recovery time of 30ns. It operates across a junction temperature range of -55°C to +150°C.

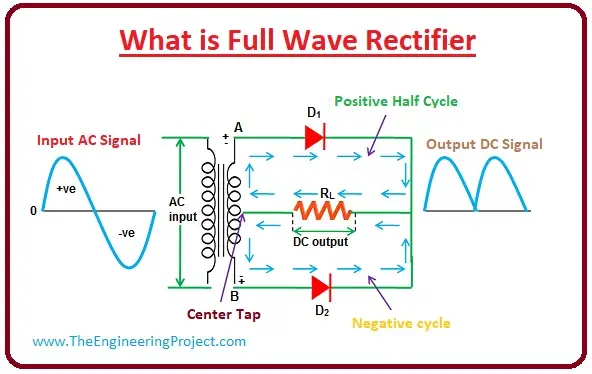

This diode is commonly employed in power supply rectification, converting AC to DC, and in surge protection circuits to safeguard sensitive components from voltage spikes. Its versatility makes it suitable for automotive, industrial, and consumer electronics.
The 1N4004L is supplied in a DO-41 package, a standard axial leaded package suitable for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1N4004L diode has a maximum repetitive peak reverse voltage rating of 400V.
The 1N4004L diode can handle an average forward current of 1A.
The typical forward voltage drop for the 1N4004L diode is 1.1V when measured at 1A.
The reverse recovery time for the 1N4004L diode is typically 30ns.
The 1N4004L diode operates within a junction temperature range of -55°C to +150°C.
The 1N4004L diode is supplied in a DO-41 package.
