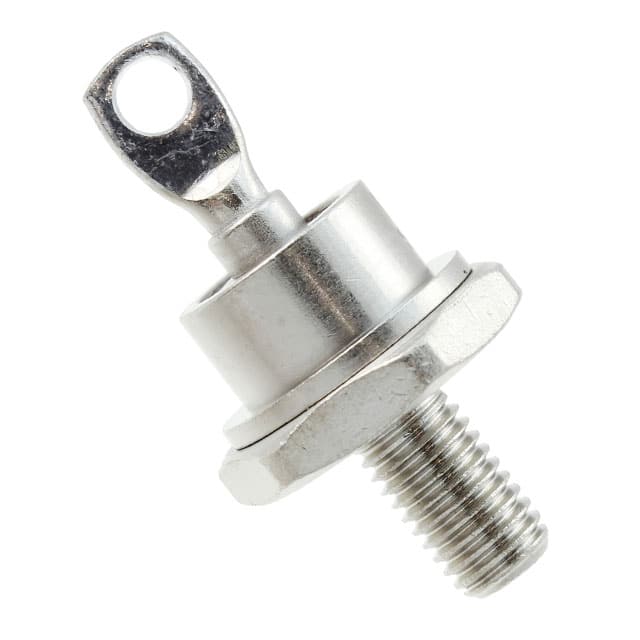

The 1N3305B is a 50W Zener diode from Microchip Technology designed for voltage regulation. It features a nominal Zener voltage of 6.8V with a ±5% tolerance, suitable for robust protection and regulation in power applications.
This device offers a maximum impedance of 0.2 Ω and a reverse leakage current of 300 µA at 4.5V. It can handle a forward voltage of 1.5V at 10A. The diode is housed in a DO-203AB (DO-5) stud mount package, suitable for chassis or stud mounting for efficient heat dissipation.
The 1N3305B has an operating temperature range of -65°C to 175°C, making it suitable for demanding environments. Its hermetically sealed construction ensures reliability.
The nominal Zener voltage is 6.8 V.
The tolerance is ±5%.
The maximum power dissipation is 50 W.
The package type is DO-203AB (DO-5), with chassis or stud mount.
The forward voltage is 1.5 V at 10 A.
The operating temperature range is -65°C to 175°C.
The reverse leakage current is 300 µA at 4.5 V.
