Mfr Part #:

1N2976RB

Mfr Name: MSC

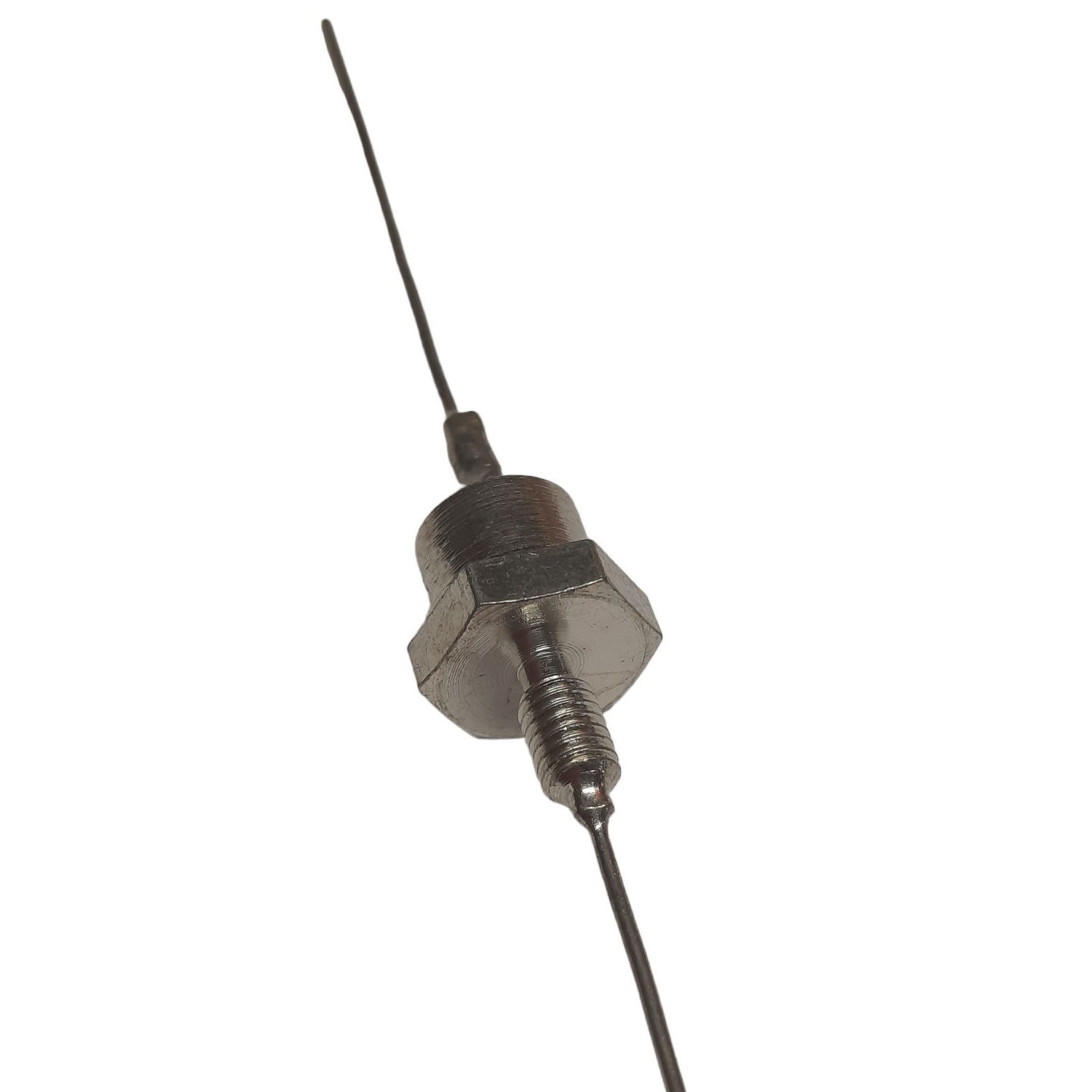

The 1N2976RB is a diode manufactured by MSC. It has a maximum power dissipation of 10W and a maximum operating temperature of 175°C.

✓ Total Stock: 1 pcs

$ Price Range: $0.99

1N2976RB Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	1 pcs On Request	1 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1N2976RB Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	MSC
Operating Temperature	175 °C
Tolerance	5 %
Weight	0.01 kg

View Similar Products (0)

1N2976RB Description

Short technical summary and product information.

The 1N2976RB is a diode from MSC, categorized under Diodes - RF. This component features a maximum power dissipation (PD Max) of 10 Watts and can operate at temperatures up to 175°C.

Key electrical specifications include a nominal reference voltage of 12V and a test current of 210mA with a tolerance of 5%. The dynamic impedance (Zmax) is rated at 3 Ohms.

Packaged in a DO4 case, this diode is not surface mounted. Its weight is approximately 0.01 kg.

1N2976RB Quick Information

Product Type: Diode

Canonical Name: 1N2976RB Diode

Subcategory: RF Diode

1N2976RB Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1N2976RB Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

1N2976RB Features

Rated for 10W power dissipation
Maximum operating temperature of 175°C
Test current of 210mA
Package type DO4 for through-hole mounting
Nominal reference voltage of 12V

1N2976RB Applications

Used in RF signal filtering circuits
Suitable for RF switching applications
Ideal for high-frequency RF protection
Applicable in communication equipment

1N2976RB FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum power dissipation for the 1N2976RB diode?

The maximum power dissipation is 10W.

What is the maximum operating temperature for the 1N2976RB diode?

The maximum operating temperature is 175°C.

What is the nominal reference voltage for the 1N2976RB diode?

The nominal reference voltage is 12V.

What is the package type for the 1N2976RB diode?

The case type is DO4.

Is the 1N2976RB diode surface mounted?

No, the 1N2976RB diode is not surface mounted.
