| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Tolerance |

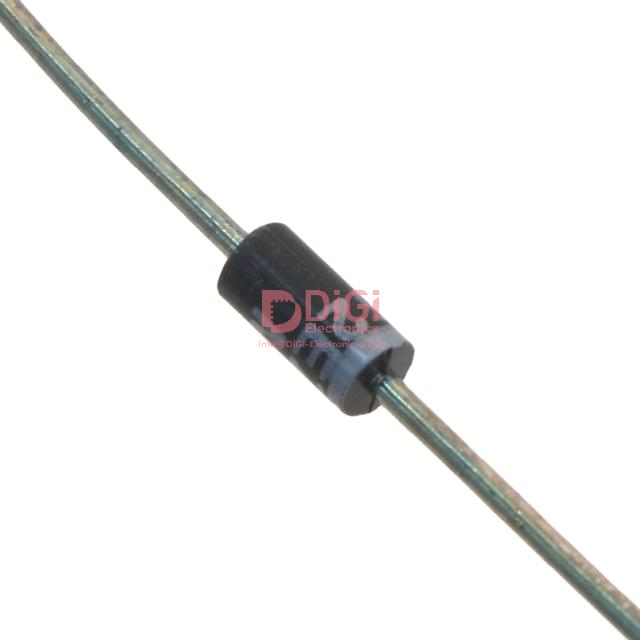

The 1EZ160D2/TR12 from Microsemi Corporation is a single Zener diode designed for various electronic applications. It features a nominal Zener voltage of 160V with a tight tolerance of ±2%, ensuring stable voltage regulation.
With a maximum power dissipation of 1W, this diode is suitable for applications requiring moderate power handling. The reverse leakage current is specified at 500 nA at 121.6 V, and the forward voltage is a maximum of 1.2V at 200 mA.
This component is housed in a DO-204AL (DO-41) package and utilizes a through-hole mounting type, making it compatible with standard PCB assembly processes. The operating temperature range is from -65°C to 150°C, providing robustness in diverse environmental conditions.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted with low confidence and may require verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 160V with a tolerance of ±2%.
The maximum power dissipation is 1 watt.
The maximum impedance is 1400 Ohms.
The reverse leakage current is 500 nA at 121.6 V.
The forward voltage is 1.2 V at 200 mA.
The operating temperature range is -65°C to 150°C.
The 1N2815B is available in a DO-204AL (DO-41) axial-lead package for through-hole mounting.
