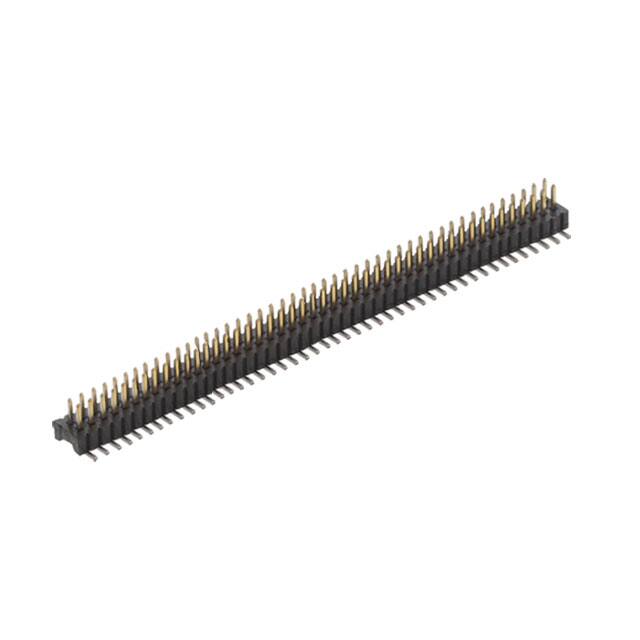

1MM-HU-D46-VS-00-F-TBP by TE Connectivity AMP Connectors

1MM-HU-D46-VS-00-F-TBP by TE Connectivity AMP Connectors

SCL 1.0 HDR DRVT USP 092 SMT G1

DistiPart #
Manufacturer Name TE Connectivity AMP Connectors
Manufacturer Part #

1MM-HU-D46-VS-00-F-TBP

Manufacturer Standard Lead Time 12 Weeks
EDA/CAD Models
Are you a distributor of this part? Register now to receive RFQ from buyers.
Download Datasheet
Other Documents
Estimated Stock: 81 *Can dispatch immediately
Estimated Price $7.979
Estimated Lead time 12 Weeks
Minimum Order Quantity: 231

Specifications of 1MM-HU-D46-VS-00-F-TBP

Product Attribute
Attribute Value
Select Attribute
Category
Headers, Male Pins
Manufacturer
TE Connectivity AMP Connectors
Connector Type
Header, Breakaway
Contact Finish Thickness
3.94碌in (0.100碌m)
Contact Finish
Tin
Contact Length
0.083" (2.10mm)
Contact Material
Phosphor Bronze
Contact Shape
Square
Contact Type
Male Pin
Fastening Type
Push-Pull
Features
Pick and Place
Insulation Color
Black
Insulation Height
0.059" (1.50mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Material Flammability Rating
UL94 V-0
Mounting Type
Surface Mount
Number of Positions
92
Number of Positions Loaded
All
Number of Rows
2
Pitch
0.039" (1.00mm)
Shrouding
Unshrouded
Style
Board to Board
Termination
Solder
Current Rating (Amps)
1A
Operating Temperature
-55掳C ~ 125掳C
Voltage Rating
30VAC
Row Spacing
0.039" (1.00mm)
View All Features
DistyParts - Get Multiple quotes in one request

Product Compliance of 1MM-HU-D46-VS-00-F-TBP

Attributes Description
CNHTS 98765434567
USHTS 45678987654
TARIC 67898765567
ECCN 3A991

Documents of 1MM-HU-D46-VS-00-F-TBP

Datasheet
  Datasheet

Environmental & Export Classifications of 1MM-HU-D46-VS-00-F-TBP

Attributes Description
RoHS Status RoHS3 Compliant
Moisture Sensitivity Level (MSL) 1 Unlimited
REACH Status REACH Unaffected
ECCN 3A991
HTSUS 9876.21.0030

Additional Resources of 1MM-HU-D46-VS-00-F-TBP

Attributes Description
Other Names RMCF 1/16S 0 R RMCF0402ZT0R00-ND RMCF1/16S0RTR-ND RMCF1/16S0RCT RMCF0402ZT0R00CT RMCF1/16S0RDKR-ND RMCF1/16S0RDKR
Standard Package 10,000
