1HVA24-BP1-F-25PPM-SHV-5KV
Advanced Energy

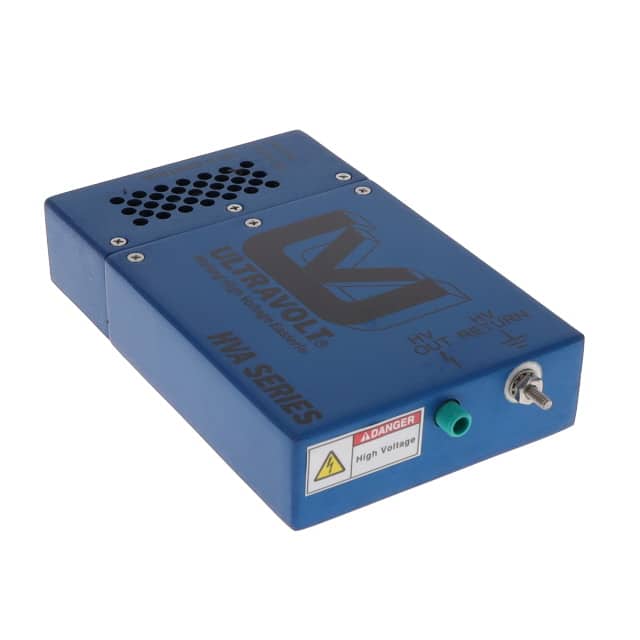

The Advanced Energy 1HVA24-BP1-F-25PPM-SHV-5KV is an enclosed DC DC converter with a chassis mount. It operates at 21.6V and provides 250µA output current.
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
This Advanced Energy 1HVA24-BP1-F is a DC DC converter with an enclosed type and chassis mount. It is designed for ITE (Commercial) applications and operates at a voltage of 21.6V, providing 250mW of power and an output current of 250µA.
The converter has a single output and operates within a temperature range of 10°C to 45°C. Its dimensions are 152.4mm in length, 96.8mm in width, and 31.8mm in height.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The REACH status is unaffected.
Key specifications include its 21.6V operating voltage, 250mW power rating, and 250µA output current. The chassis mount and enclosed design make it suitable for various integration needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 21.6V.
The power rating is 250mW.
The operating temperature range is 10°C to 45°C.
Yes, it is RoHS3 compliant.
The Moisture Sensitivity Level is 1 Unlimited.
