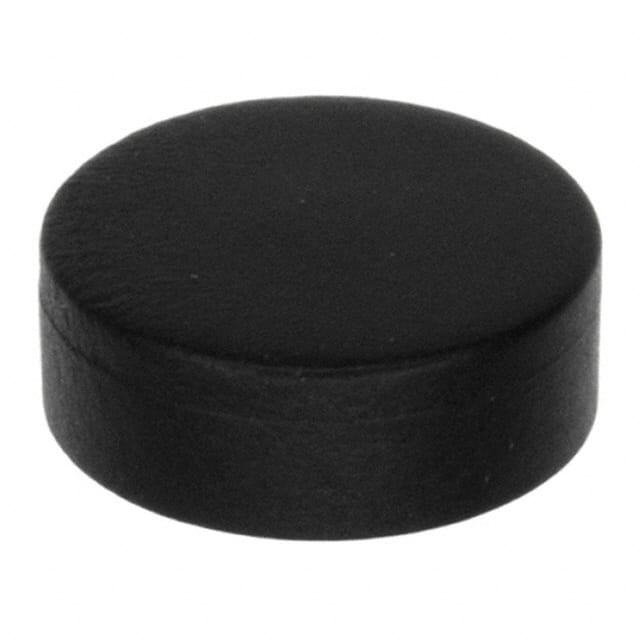

1GA09 The MEC Switches 1GA09 is a tactile switch cap designed for the Multimec® Series. It features a round, black, non-illuminated design.
Mfr Part #:

1GA09

Available from 1 distributors
Mfr Name: MEC Switches
MEC Switches
The MEC Switches 1GA09 is a tactile switch cap designed for the Multimec® Series. It features a round, black, non-illuminated design.
✓ Total Stock: 100 pcs
$ Price Range: $0.75

1GA09 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1GA09 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current Rating
For Use With
Illumination
Mounting Type
Shape
Switch Type
Voltage Rating
View Similar Products (0)

1GA09 Description

Short technical summary and product information.

The MEC Switches 1GA09 is a tactile switch cap with a round shape and black color, designed for use with the Multimec® Series.



This non-illuminated cap has a size of 11.00mm diameter by 4.00mm height and features a snap-fit mounting type. It is rated for a current of 50mA at 24VDC and offers IP67 sealing for environmental protection.



The switch cap has a nominal switch travel of 1mm. The operating temperature range for low-temperature applications is -40°C to +115°C, and for high-temperature applications, it is -40°C to +160°C.



This component is suitable for through-hole or SMD mounting and is compatible with the Multimec® Series switches.

1GA09 Quick Information

Product Type: Switch Cap
Series: Multimec®
Canonical Name: MEC Switches 1GA09 Tactile Switch Cap
Subcategory: Switch Caps

1GA09 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1GA09 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

1GA09 Features

  • Round, black, non-illuminated tactile switch cap.
  • Designed for MEC Switches Multimec® Series.
  • Features IP67 sealing for environmental protection.
  • Snap-fit mounting for secure installation.
  • Operates in wide temperature ranges.

1GA09 Applications

  • Ideal for Multimec® Series switch applications.
  • Suitable for harsh environmental conditions.
  • Used in through-hole and SMD designs.
  • Provides tactile feedback for user interfaces.

1GA09 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating for the 1GA09 switch cap?

The 1GA09 switch cap has a current rating of 50mA at 24VDC.

What is the operating temperature range for this switch cap?

The operating temperature range is -40°C to +115°C for low temperatures and -40°C to +160°C for high temperatures.

What is the sealing rating of the 1GA09 switch cap?

The 1GA09 switch cap has an IP67 sealing rating.

What is the RoHS status of the 1GA09 switch cap?

The 1GA09 switch cap is RoHS3 Compliant.

What is the MSL rating for the 1GA09 switch cap?

The MSL rating is Level 1 Unlimited.
