| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,628 pcs
|
1628 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Propagation Delay | |
| SVHC Present | |
| Tape & Reel |
The Infineon 1EDN7511B is a high-performance single-channel low-side gate driver IC designed to drive logic and normal level MOSFETs, as well as GaN HEMT devices. It boasts a robust 4 A source and 8 A sink output capability, making it suitable for demanding power applications.
Key electrical characteristics include a typical propagation delay of 19 ns and a propagation delay accuracy of +6/-4 ns. The device also offers input voltage robustness of -10 V and reverse current robustness of 5 A. It is available with 4.2 V and 8 V UVLO options, ensuring reliable operation under various conditions.

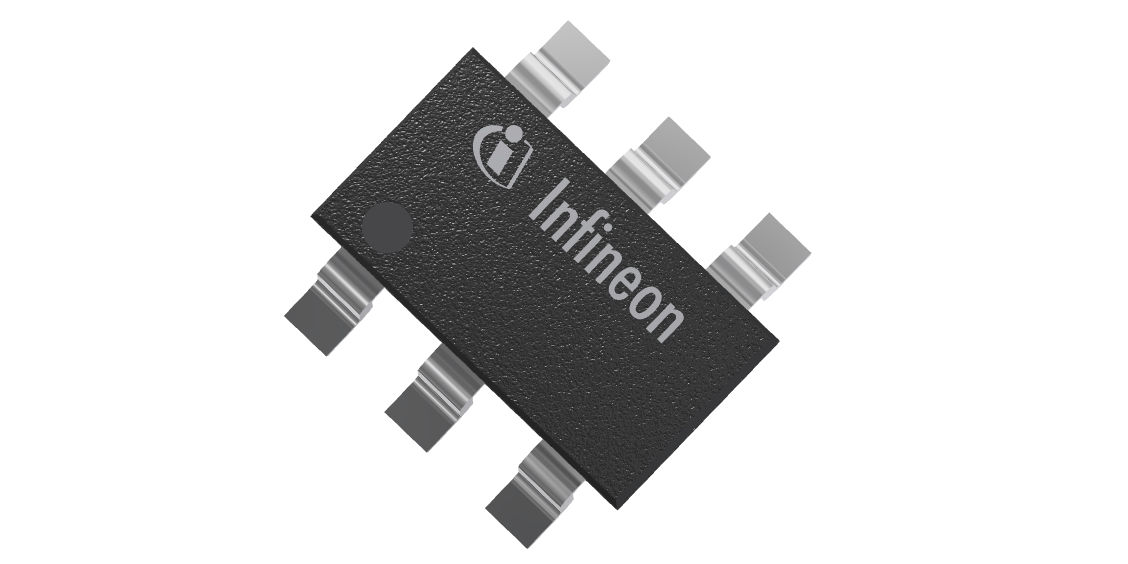

This gate driver IC is offered in the industry-standard PG-SOT23-6 package, facilitating easy integration into existing designs. Its versatility makes it ideal for applications such as switch-mode power supplies (SMPS), power factor correction systems, DC-DC power converters, and low-voltage drives.
The 1EDN7511B is qualified for industrial applications according to JEDEC standards, ensuring reliability and performance in harsh environments. Its design supports efficient power conversion and control in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1EDN7511B offers a 4 A source and 8 A sink output current capability.
The typical propagation delay for the 1EDN7511B is 19 ns.
The 1EDN7511B is supplied in the PG-SOT23-6 package.
The 1EDN7511B is available with 4.2 V and 8 V UVLO options.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
