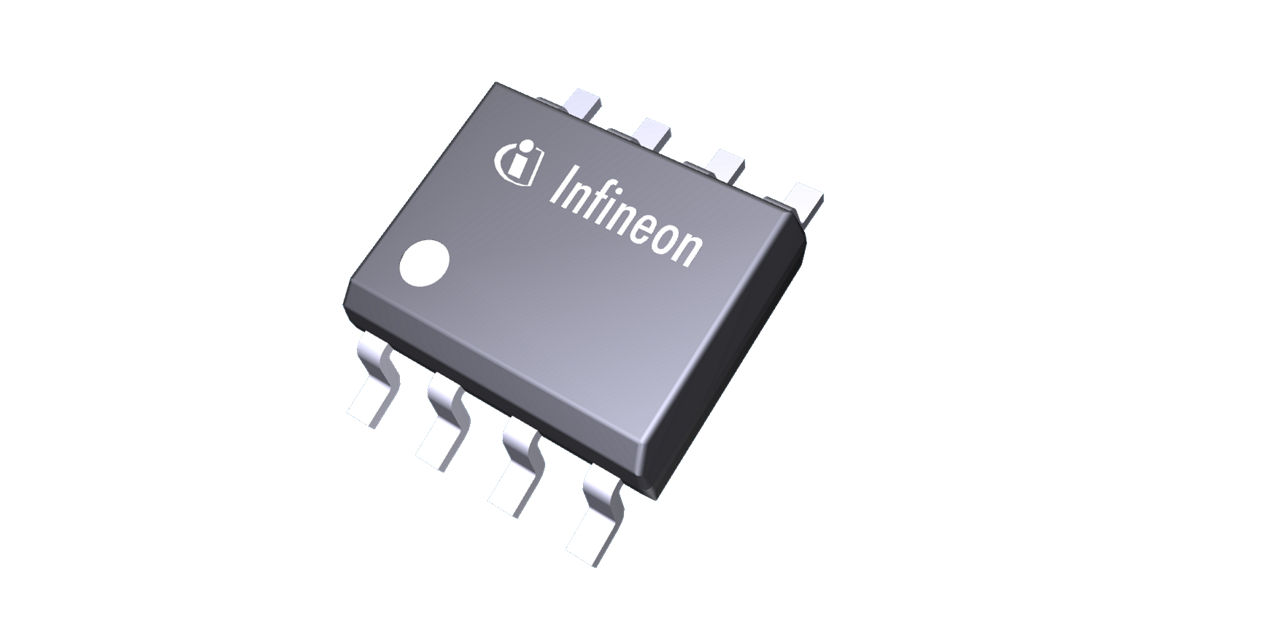

1EDI20N12AF The 1EDI20N12AF is an isolated gate driver from Infineon. It features up to 10 A typical peak output current (AF variants).
Mfr Part #:

1EDI20N12AF

Available from 1 distributors
Mfr Name: Infineon
Infineon
The 1EDI20N12AF is an isolated gate driver from Infineon. It features up to 10 A typical peak output current (AF variants).
✓ Total Stock: 1,696 pcs
$ Price Range: $4.30

1EDI20N12AF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,696 pcs
On Request
1696 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1EDI20N12AF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
View Similar Products (0)

1EDI20N12AF Description

Short technical summary and product information.

The 1EDI20N12AF is an isolated gate driver manufactured by Infineon. It is designed to drive power transistors such as IGBTs and MOSFETs in applications requiring galvanic isolation.



The device provides a typical peak output current of 10 A for AF variants (and 6.2 A typical peak for other variants). This high current capability enables fast switching of large gate charges, improving efficiency in high-power systems.



Typical applications include motor drives, uninterruptible power supplies, and industrial power converters. The part is classified under isolators - gate drivers.

1EDI20N12AF Quick Information

Product Type: Isolated Gate Driver
Canonical Name: 1EDI20N12AF Isolated Gate Driver
Subcategory: Gate Drivers

1EDI20N12AF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3
REACH Status: REACH Unaffected
Lead Free: Yes

1EDI20N12AF Estimated Pricing

Qty Low High
1+ $4.30 $4.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

1EDI20N12AF Features

  • Single channel isolated gate driver IC.
  • Up to 10 A typical peak current.
  • Separate source and sink outputs.
  • Galvanically isolated coreless transformer driver.
  • High CMTI greater than 100 kV/s.

1EDI20N12AF Applications

  • Driving IGBTs in motor drives.
  • Used in industrial power supplies.
  • Suitable for UPS systems.
  • Power conversion in renewable energy systems.

1EDI20N12AF FAQs

1 frequently asked questions generated from this part’s specifications.
What is the peak output current of the 1EDI20N12AF?

The 1EDI20N12AF provides a typical peak output current of 10 A for AF variants and 6.2 A for other variants.
