Mfr Part #:

1EDI2002AS

Mfr Name: Infineon

The Infineon 1EDI2002AS is a single-channel IGBT driver featuring on-chip galvanic insulation up to 6 kV. It supports 600 V and 1200 V IGBT technologies and offers programmable safety features.

✓ Total Stock: 3,441 pcs

$ Price Range: $2.01

1EDI2002AS Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	3,421 pcs On Request	3421 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	20 pcs On Request	20 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1EDI2002AS Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Halogen Free	Yes
Inputs	Pseudo-differential
Mounting Type	Surface Mount
Propagation Delay	Low
SVHC Present	Not Present

View Similar Products (0)

1EDI2002AS Description

Short technical summary and product information.

The Infineon 1EDI2002AS is a high-performance, single-channel IGBT driver designed for demanding applications. It provides on-chip galvanic insulation up to 6 kV, ensuring robust safety and reliability.

This device supports both 600 V and 1200 V IGBT technologies, offering flexibility for various power designs. Key functional features include low propagation delay, minimal PWM distortion, and support for 5 V logic levels. It integrates a 16-bit SPI interface with daisy chain support for efficient communication and control.

Safety is paramount with the 1EDI2002AS, featuring programmable desaturation monitoring, overcurrent protection, and automatic emergency turn-off in failure cases. It also includes under- and over-voltage supervision for all power supplies. The driver is suitable for systems up to ASIL D requirements, making it ideal for automotive applications like inverters for HEVs and EVs, high voltage DC/DC converters, and industrial drives.

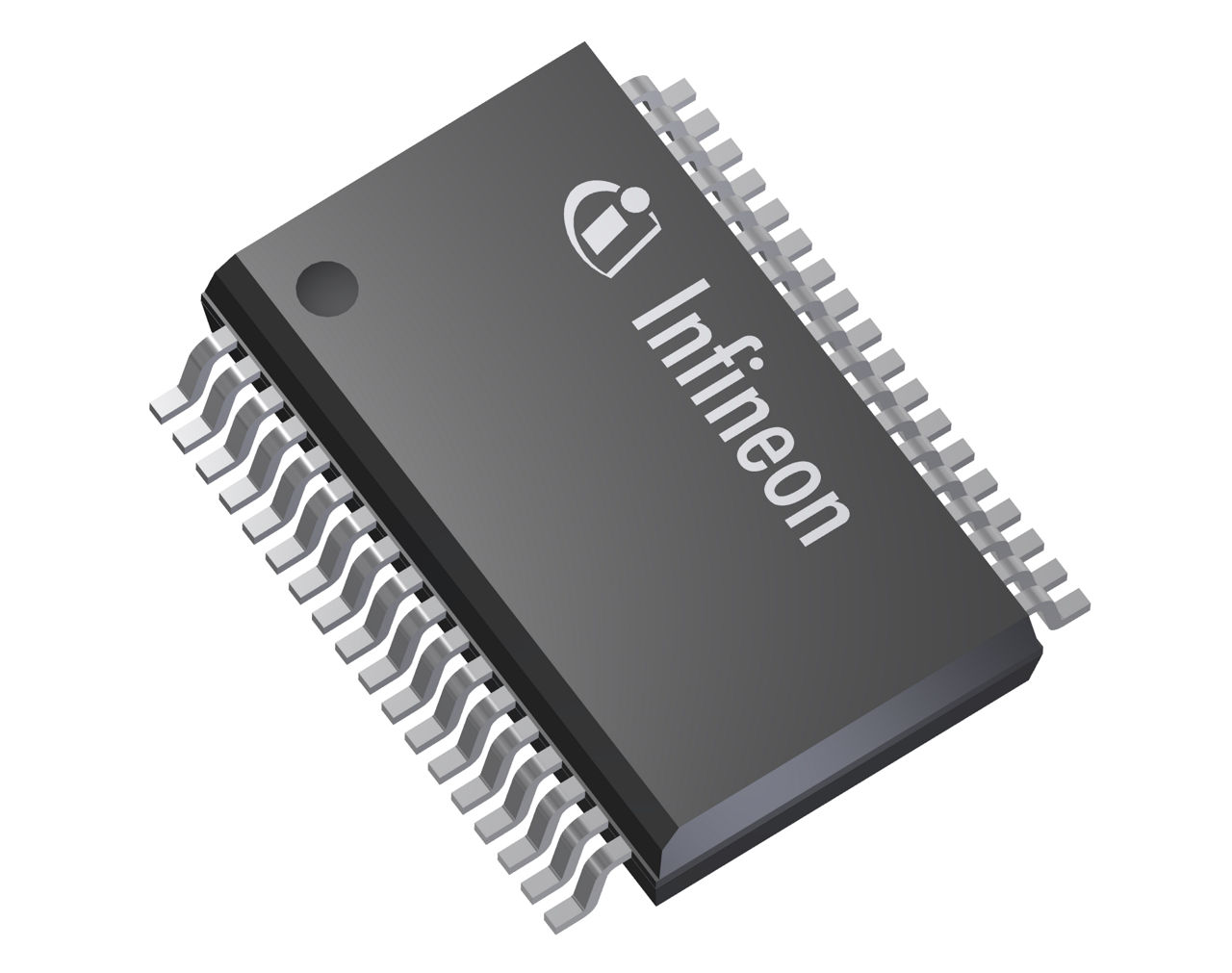

The 1EDI2002AS is housed in a 36-pin PG-DSO-36 green package, designed for surface mount applications.

1EDI2002AS Quick Information

Product Type: IGBT Driver

Series: EiceDRIVER™

Canonical Name: 1EDI2002AS Single Channel IGBT Driver

Subcategory: Isolated Gate Driver

1EDI2002AS Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 3

REACH Status: REACH Unaffected

Lead Free: Yes

1EDI2002AS Estimated Pricing

Qty	Low	High
1+	$2.01	$2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

1EDI2002AS Features

On-chip galvanic insulation up to 6 kV.
Supports 600 V and 1200 V IGBT technologies.
Programmable safety and monitoring features.
Suitable for systems up to ASIL D.
36-pin PG-DSO-36 green package.

1EDI2002AS Applications

Automotive HEV/EV inverters.
High voltage DC/DC converters.
Industrial drive systems.

1EDI2002AS FAQs

7 frequently asked questions generated from this part’s specifications.

What is the galvanic insulation rating of the 1EDI2002AS?

The 1EDI2002AS features on-chip galvanic insulation up to 6 kV.

What IGBT technologies does the 1EDI2002AS support?

It supports 600 V and 1200 V IGBT technologies.

What is the SPI interface speed for the 1EDI2002AS?

The 1EDI2002AS has a 16-bit Standard SPI interface with speeds up to 2 MBaud.

What is the package type for the 1EDI2002AS?

The 1EDI2002AS is supplied in a 36-pin PG-DSO-36 green package.

What is the RoHS status of the 1EDI2002AS?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the 1EDI2002AS?

The Moisture Sensitivity Level is 1 Unlimited.

What is the REACH status for the 1EDI2002AS?

The REACH status is REACH Unaffected.
