Mfr Part #:

1ED3461MU12M

Mfr Name: Infineon

The Infineon 1ED3461MU12M is a single-channel isolated gate driver IC designed for driving IGBTs, SiC, and Si MOSFETs. It offers a typical output current of ±6 A and operates at high ambient temperatures.

✓ Total Stock: 1,105 pcs

$ Price Range: $4.30

1ED3461MU12M Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,105 pcs On Request	1105 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1ED3461MU12M Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Halogen Free	Yes
Lead Spacing	1.27 mm
Mounting Type	Surface Mount
Operating Temperature	up to 125 °C
Output Current	±6 A
SVHC Present	Not Present

View Similar Products (0)

1ED3461MU12M Description

Short technical summary and product information.

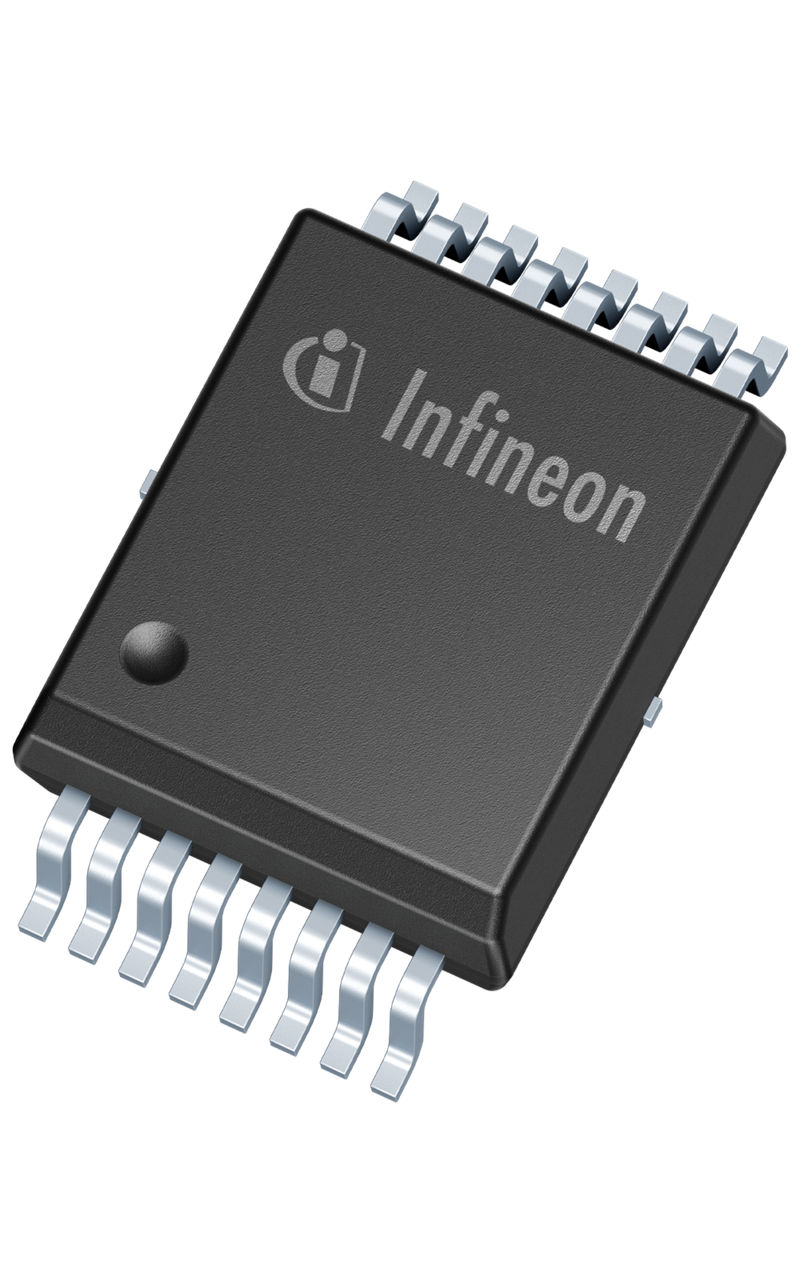

The Infineon 1ED3461MU12M is a single-channel, galvanically isolated gate driver IC housed in a space-saving PG-DSO-16 package with a large creepage distance. This device is engineered to drive 650 V, 1200 V, 1700 V, and 2300 V IGBTs, SiC, and Si MOSFETs.

Key electrical features include a typical peak output current of ±6 A, separate source and sink outputs for flexible switching configurations, and precise VCEsat detection (DESAT) with adjustable filter time. It also incorporates an adjustable IGBT soft turn-off function after desaturation detection.

The IC supports operation at high ambient temperatures up to 125 °C and includes undervoltage lockout protection. It boasts high common-mode transient immunity (CMTI) of 200 kV/µs and tight IC-to-IC propagation delay matching.

Safety certifications include UL 1577 recognition and IEC 60747-17 approval, providing robust isolation for demanding applications such as industrial motor drives, solar inverters, and UPS systems. The device is qualified for industrial applications.

1ED3461MU12M Quick Information

Product Type: Gate Driver IC

Series: 1ED34x1Mc12M

Canonical Name: Infineon EiceDRIVER™ 1ED34x1Mc12M Enhanced Single-channel Isolated Gate Driver IC

Subcategory: Isolated Gate Driver

1ED3461MU12M Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 3

REACH Status: REACH Unaffected

Lead Free: Yes

1ED3461MU12M Estimated Pricing

Qty	Low	High
1+	$4.30	$4.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

1ED3461MU12M Features

±6 A typical sinking and sourcing peak output current.
Operates at high ambient temperatures up to 125 °C.
Precise VCEsat detection with adjustable filter time.
High common-mode transient immunity of 200 kV/µs.
UL 1577 and IEC 60747-17 certified isolation.

1ED3461MU12M Applications

Ideal for industrial motor drives.
Suitable for solar inverters.
Used in UPS systems.
Applicable to high-voltage DC-DC converters.

1ED3461MU12M FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum output current of the 1ED3461MU12M?

The typical output current is ±6 A.

What is the output supply voltage rating of the 1ED3461MU12M?

The output supply voltage is rated up to 40 V (absolute maximum).

What isolation voltage does the 1ED3461MU12M provide?

The isolation test voltage is 6840 V (rms) for 1 s, and the working isolation voltage is 5700 V (rms) for 60 s per UL 1577.

What is the common-mode transient immunity of the 1ED3461MU12M?

The common-mode transient immunity is 200 kV/µs.

Up to what ambient temperature does the 1ED3461MU12M operate?

It operates at ambient temperatures up to 125 °C, with an over-temperature shutdown at 160 °C (±10 °C).

What package is the 1ED3461MU12M offered in?

The 1ED3461MU12M is offered in a PG-DSO-16 surface-mount package with 1.27 mm lead spacing.

What is the propagation delay matching of the 1ED3461MU12M?

The maximum IC-to-IC propagation delay matching is 30 ns.
