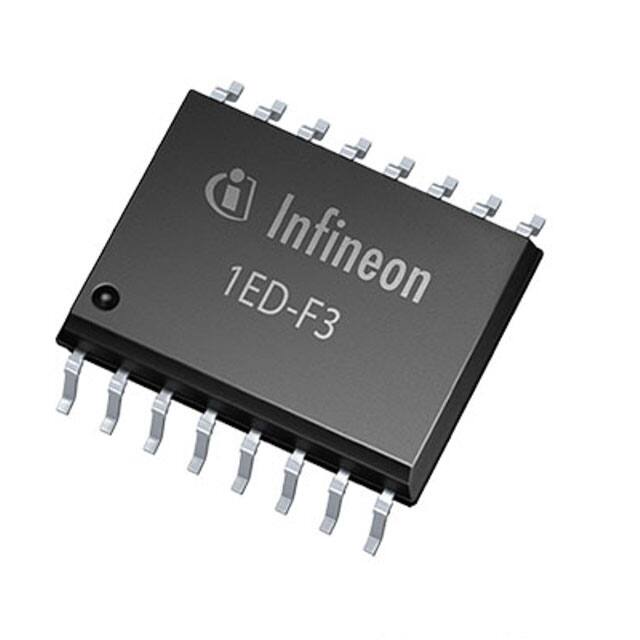

The Infineon Technologies 1ED3321MC12NXUMA1 is a single-channel, galvanically isolated gate driver IC from the EiceDRIVER™ Enhanced (1ED-F3) family. It is designed for use with IGBTs, Si, and SiC MOSFETs, supporting voltages up to 2300V.
Key electrical specifications include a typical peak output current of +6 A / -8.5 A, a high common-mode transient immunity (CMTI) exceeding 300 kV/µs, and a short propagation delay of 85 ns. The device provides 5700 V (rms) isolation for 60 seconds and reinforced insulation according to IEC 60747-17.
Integrated protection features such as short-circuit protection (DESAT), soft-off, active Miller Clamp, and active shutdown enhance reliability. The input supply voltage (VCC1) is compatible with 3.3 V and 5 V logic levels. The device operates within an ambient temperature range of -40°C to 125°C.
Packaged in a PG-DSO-16-40 wide body package, it features 8 mm creepage. The mounting type is surface mount, suitable for various industrial applications including motor drives, solar inverters, UPS systems, and high-voltage DC-DC converters.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.69 | $3.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical peak output current is +6 A and -8.5 A.
The isolation voltage is 5700 V (rms) for 60 seconds, with reinforced insulation of 1767 V (peak).
The typical propagation delay is 85 ns.
It is supplied in a PG-DSO-16-40 wide body package, which is a 16-SOIC (0.154", 3.90mm Width) surface mount package.
The operating temperature range is -40°C to 125°C (TA).
