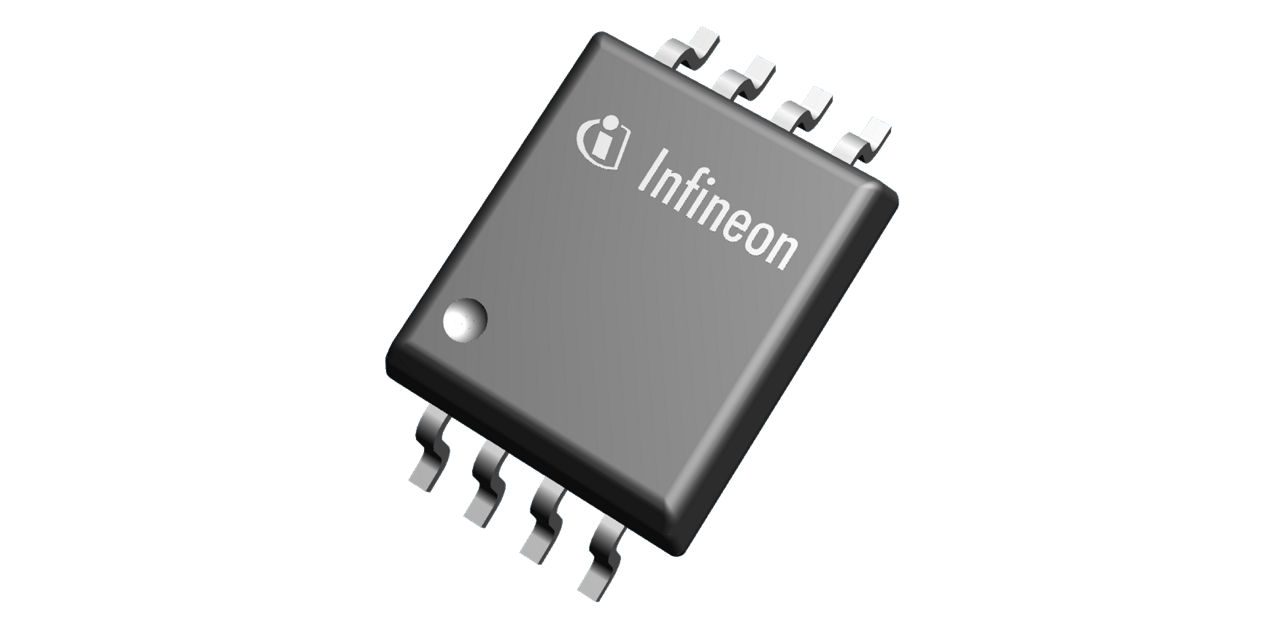

1ED3124MU12H 1ED3124MU12H is an isolator gate driver manufactured by Infineon.
Mfr Part #:

1ED3124MU12H

Available from 1 distributors
Mfr Name: Infineon
Infineon
1ED3124MU12H is an isolator gate driver manufactured by Infineon.
✓ Total Stock: 1,104 pcs
$ Price Range: $4.30

1ED3124MU12H Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,104 pcs
On Request
1104 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1ED3124MU12H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
SVHC Present
View Similar Products (0)

1ED3124MU12H Description

Short technical summary and product information.

The 1ED3124MU12H is a gate driver isolator from Infineon. It is categorized under Isolators - Gate Drivers, designed for isolated gate drive applications in power electronics. This component provides galvanic isolation between the control input and the power stage.

1ED3124MU12H Quick Information

Product Type: Isolator Gate Driver
Canonical Name: 1ED3124MU12H Isolator Gate Driver
Subcategory: Gate Driver

1ED3124MU12H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3
REACH Status: REACH Unaffected
Lead Free: Yes

1ED3124MU12H Estimated Pricing

Qty Low High
1+ $4.30 $4.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

1ED3124MU12H Features

  • 14.0 A typical peak output current.
  • 40 V absolute maximum output supply voltage.
  • CMTI greater than 200 kV/µs.
  • 5.7 kV (rms) galvanic isolation (UL 1577).
  • Separate source and sink outputs.

1ED3124MU12H Applications

  • AC and brushless DC motor drives
  • High voltage DC-DC converters and inverters
  • Induction heating resonant applications
  • UPS-systems and solar inverters
  • Server and telecom switched mode power supplies
