Mfr Part #:

1ED020I12FA2

Mfr Name: Infineon

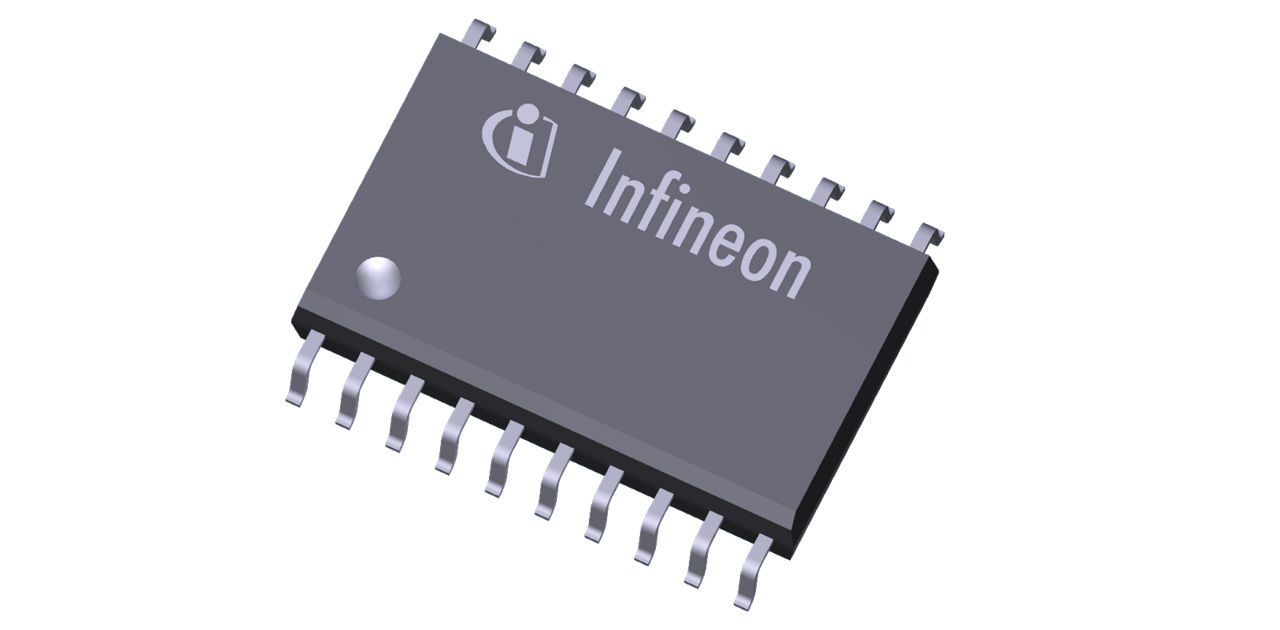

The Infineon 1ED020I12FA2 is a single-channel isolated IGBT driver IC. It features a 2A rail-to-rail output and integrated protection features.

✓ Total Stock: 14,537 pcs

$ Price Range: $4.30

1ED020I12FA2 Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	8,100 pcs On Request	8100 pcs	On Request	1	On Request	On Request	16+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	4,434 pcs On Request	4434 pcs	On Request	1	On Request	On Request	17+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,718 pcs On Request	1718 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	285 pcs On Request	285 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

1ED020I12FA2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Automotive Grade	Yes
Halogen Free	Yes
Insulation	Basic insulation
Lead Style	Gull Wing
Output Current	2A
Protection Features	IGBT desaturation protection, Active Miller Clamp, Active shut down

View Similar Products (0)

1ED020I12FA2 Description

Short technical summary and product information.

The Infineon 1ED020I12FA2 is a galvanic isolated single-channel IGBT driver IC designed for high-voltage applications. It provides a robust 2A rail-to-rail output current capability, making it suitable for driving 600V/1200V IGBTs.

This IC utilizes coreless transformer technology for data transfer across galvanic isolation, ensuring safety and reliability. It incorporates essential protection features such as IGBT desaturation detection, active Miller clamping, and active shut down to safeguard the driven power devices.

The 1ED020I12FA2 is housed in a PG-DSO-20 package and offers basic insulation according to DIN EN 60747-5-2, also recognized under UL 1577. Its logic pins are 5V CMOS compatible, allowing for direct connection to microcontrollers. Typical applications include drive and auxiliary inverters for HEV and EV, as well as high-power DC/DC inverters.

This component is AEC Qualified, indicating its suitability for demanding automotive environments. The integrated protection mechanisms and isolation capabilities make it a reliable choice for power electronics designs requiring high efficiency and safety.

1ED020I12FA2 Quick Information

Product Type: IGBT Driver IC

Series: EiceDRIVER™

Canonical Name: Infineon 1ED020I12FA2 Single IGBT Driver IC

Subcategory: Isolated Gate Driver

1ED020I12FA2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 3

REACH Status: REACH Unaffected

Lead Free: Yes

1ED020I12FA2 Estimated Pricing

Qty	Low	High
1+	$4.30	$4.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

1ED020I12FA2 Features

Single channel isolated IGBT driver.
Provides 2A rail-to-rail output.
Features coreless transformer isolation.
Includes IGBT desaturation protection.
Housed in PG-DSO-20 package.

1ED020I12FA2 Applications

Drives IGBTs in motor control inverters.
Used in industrial power supplies.
Suitable for solar inverters.
Ideal for UPS systems.

1ED020I12FA2 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the package type of the 1ED020I12FA2?

PG-DSO-20.

What is the output current of the 1ED020I12FA2?

2A typical.

What insulation type does the 1ED020I12FA2 provide?

Basic insulation according to DIN EN 60747-5-2.

What IGBT voltage ratings is the 1ED020I12FA2 designed for?

600V and 1200V IGBTs.

What protection features are integrated in the 1ED020I12FA2?

IGBT desaturation protection, active Miller clamp, and active shutdown.

What logic compatibility does the 1ED020I12FA2 have?

5V CMOS compatible.
