The Infineon Technologies 1ED020I12B2XUMA1 is an enhanced single-channel isolated gate driver IC utilizing coreless transformer technology for galvanic isolation. It is suitable for driving 600V and 1200V IGBTs and SiC MOSFETs, offering a typical rail-to-rail output current of 2A.
Key features include integrated protection functions such as VCEsat detection (DESAT), short circuit clamping, active shut-down, and active Miller clamp. The device operates with a supply voltage range of 13V to 20V and has an absolute maximum output supply voltage of 28V. It boasts a typical propagation delay of 195 ns and high common mode transient immunity (CMTI) of 100 kV/µs.

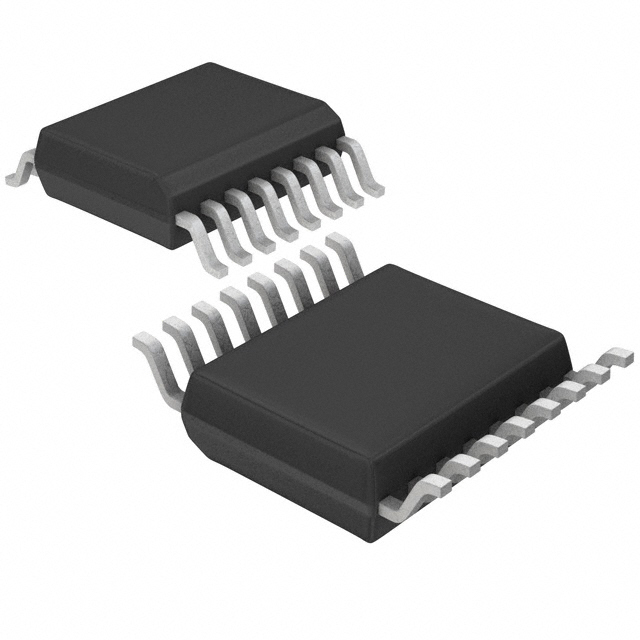

The 1ED020I12B2XUMA1 is packaged in a PG-DSO-16-15 (16-SOIC, 7.50mm width) surface mount package. Its operating temperature range is -40°C to 150°C (TJ). This gate driver is qualified for various applications including AC and brushless DC motor drives, high voltage DC/DC converters, UPS systems, solar inverters, and EV charging.
Potential applications include AC and brushless DC motor drives, high voltage DC/DC converters, UPS systems, solar inverters, EV charging, commercial/construction/agricultural vehicles (CAV), commercial air conditioners (CAC), and industrial power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1ED020I12B2XUMA1 has a typical output current of 2 A.
The 1ED020I12B2XUMA1 is available in a PG-DSO-16-15 package, which is a 16-SOIC with a 7.50mm width.
The operating temperature range for the 1ED020I12B2XUMA1 is -40°C to 150°C (TJ).
The RoHS status of the 1ED020I12B2XUMA1 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the 1ED020I12B2XUMA1 is 1 Unlimited.
The maximum propagation delay for the 1ED020I12B2XUMA1 is 195 ns.
The 1ED020I12B2XUMA1 integrates VCEsat-detection (DESAT), short circuit clamping, active shut-down, and active Miller clamp.
