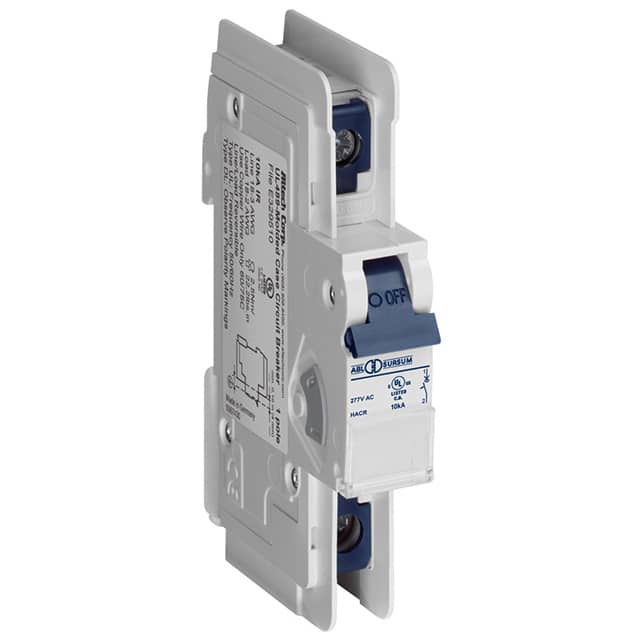

The Altech Corporation 1D6UL is a miniature molded case circuit breaker designed for reliable circuit protection. This 1-pole unit operates with a thermal magnetic trip mechanism and is rated for a current of 6A and a voltage of 277V AC.
Key electrical specifications include a short circuit interrupting capacity of 10 kA at 120V, 240V, and 277V. The breaker offers a calibrated temperature of 40°C, with an ambient operating temperature range of -25°C to +55°C and a storage temperature range of -40°C to +70°C.
Designed for ease of installation, the 1D6UL features a DIN rail mounting type and a lever actuator. It has an electrical life of 60,000 cycles and a mechanical life of 100,000 cycles. The device is certified by CE, cULus, and UL489.
This circuit breaker is suitable for various industrial and commercial applications requiring robust overcurrent protection.
The Altech 1D6UL circuit breaker has a current rating of 6A.
The voltage rating for the 1D6UL circuit breaker is 277V AC.
The Altech 1D6UL circuit breaker has 1 pole.
The Altech 1D6UL is a thermal magnetic circuit breaker.
The approval agencies for the 1D6UL circuit breaker are CE, cULus, and UL489.
The Altech 1D6UL circuit breaker is mounted on a DIN rail.
The ambient operating temperature range for this circuit breaker is -25°C to +55°C.
