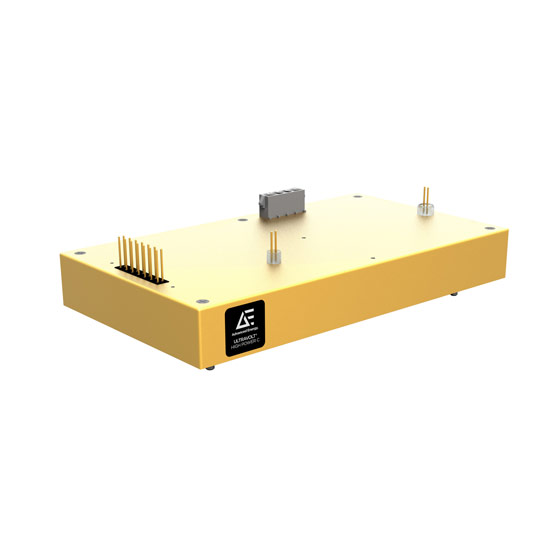

The Advanced Energy 1C24-N125 is a capacitor-charging supply suitable for applications requiring more than 30W. This model features a unipolar output type and analog control.
Key electrical specifications include a maximum output voltage of 1000V and a maximum output power of 125W, with a power range from 60W to 250W. The output voltage can range from 0V to 60,000V, and the output current ranges from 0.001A to 2A. The input voltage range is between 23V and 30V.
Mechanical dimensions are 4.5 inches in width, 1.06 inches in height, and 8 inches in length. The mounting type supports both through-hole and surface mount configurations. The temperature coefficient is 25 ppm, and the ripple is rated at 10000 ppm.
This component is designed for reliable performance in demanding applications. Its robust specifications make it suitable for various power supply needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 1000V.
The maximum output power is 125W.
The dimensions are 4.5 inches in width, 1.06 inches in height, and 8 inches in length.
The temperature coefficient is 25 ppm.
The ripple is 10000 ppm.
It supports an input voltage range from 23V to 30V.
