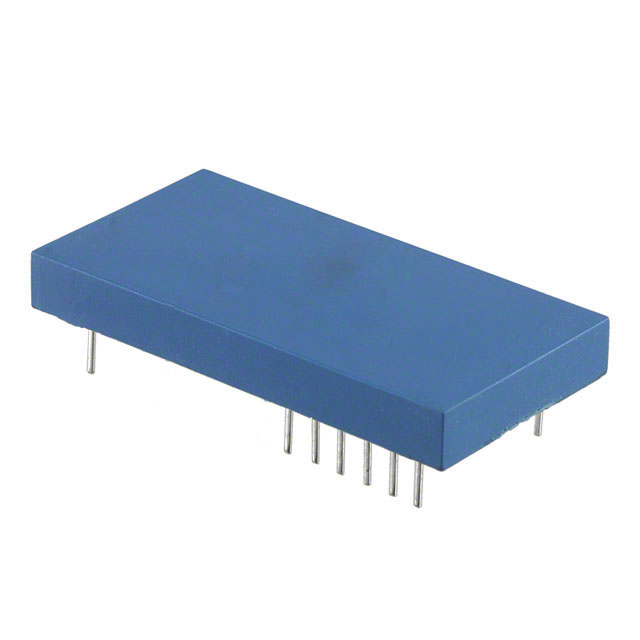

1B22AN The 1B22AN is a programmable isolated voltage-to-current converter from Analog Devices. It features 1500 V RMS isolation, pin-selectable input ranges (0-5 V or 0-10 V) and output ranges (4-20 mA or 0-20 mA).
Mfr Part #:

1B22AN

Available from 1 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The 1B22AN is a programmable isolated voltage-to-current converter from Analog Devices. It features 1500 V RMS isolation, pin-selectable input ranges (0-5 V or 0-10 V) and output ranges (4-20 mA or 0-20 mA).
✓ Total Stock: 6,500 pcs

1B22AN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,500 pcs
On Request
6500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1B22AN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Input Type
Lead Style
Mounting Type
Operating Temperature
Output Type
Supplier Device Package
Termination Style
Type
View Similar Products (0)

1B22AN Description

Short technical summary and product information.

The 1B22AN is a programmable, isolated voltage-to-current (V/I) converter from Analog Devices. It incorporates transformer isolation to achieve high performance and reliability, making it suitable for industrial applications with high common-mode interference.



The device offers pin-programmable input voltage ranges of 0 to 5 V or 0 to 10 V, and output current ranges of 4 to 20 mA or 0 to 20 mA. It provides 1500 V RMS galvanic isolation between input and output, with low nonlinearity of ±0.05% max (typical 0.02%), low offset drift of 300 nA/°C, and low gain drift of 50 ppm/°C. Common mode rejection is 90 dB minimum.



An internal isolated loop supply drives up to 1000 Ω load. The device includes normal-mode output protection up to 240 V RMS and meets IEEE STD 472 for common-mode transient protection. It is available in a 12-DIP through-hole package and operates over -40°C to 85°C.



Typical applications include multichannel process control, D/A converter to current loop interfaces, analog transmitters and controllers, and remote data acquisition systems. The compact 1.0" x 2.10" x 0.35" plastic package facilitates integration.

1B22AN Quick Information

Product Type: Voltage-to-Current Converter
Series: 1B22
Canonical Name: Programmable, Isolated Voltage-to-Current Converter
Subcategory: Voltage-to-Current Converter

1B22AN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1B22AN Features

  • Programmable isolated voltage-to-current converter.
  • 1500 V RMS galvanic isolation.
  • Pin-selectable 0-5 V or 0-10 V input.
  • Pin-selectable 4-20 mA or 0-20 mA output.
  • Low nonlinearity ±0.05% max.

1B22AN Applications

  • Multichannel process control loop interface.
  • D/A converter to current loop conversion.
  • Analog transmitters and controllers.
  • Remote data acquisition systems.
  • Industrial environments with high CMV interference.

1B22AN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the 1B22AN?

The input voltage range is pin-selectable from 0 to 5 V or 0 to 10 V.

What is the output current range?

The output current range is pin-selectable from 4 to 20 mA or 0 to 20 mA.

What is the isolation voltage?

The device provides 1500 V RMS galvanic isolation between input and loop.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package type is the 1B22AN available in?

It is available in a 12-DIP through-hole package.

What is the nonlinearity of the 1B22AN?

The nonlinearity is ±0.05% maximum, with typical 0.02%.

Is the 1B22AN RoHS compliant?

It is marked as RoHS3 Compliant, but this status is unverified and should be confirmed with the manufacturer.
