| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

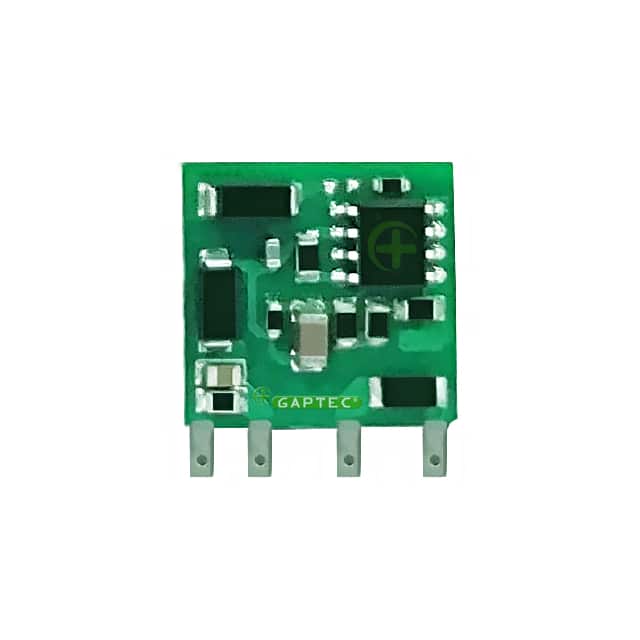

The GAPTEC Electronic 1ACOS_05S is a 1W, single-output AC-DC converter from the 1ACOS_S series. It is designed for industrial control, electric power, and smart home applications, offering a wide input voltage range of 85~305VAC or 70~430VDC.
This converter provides a 5V output at 200mA with an efficiency of 57% typical. Key electrical specifications include ±1.5% typical output voltage accuracy, ±1.5% typical line regulation, and ±2.5% typical load regulation. It also features short circuit protection and over current protection.
The compact, open-frame design with Through Hole mounting makes it suitable for integration into various systems. The operating temperature range is -40°C to +85°C. Safety approvals include CE, cURus, and UL, with compliance to EN62368-1 standard.
The output voltage is 5V.
The power rating is 1W.
The input voltage range is 85 to 305 VAC or 70 to 430 VDC.
The operating temperature range is -40°C to +85°C.
The package type is a 4-SIP Module.
It is mounted using the Through Hole method.
