| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

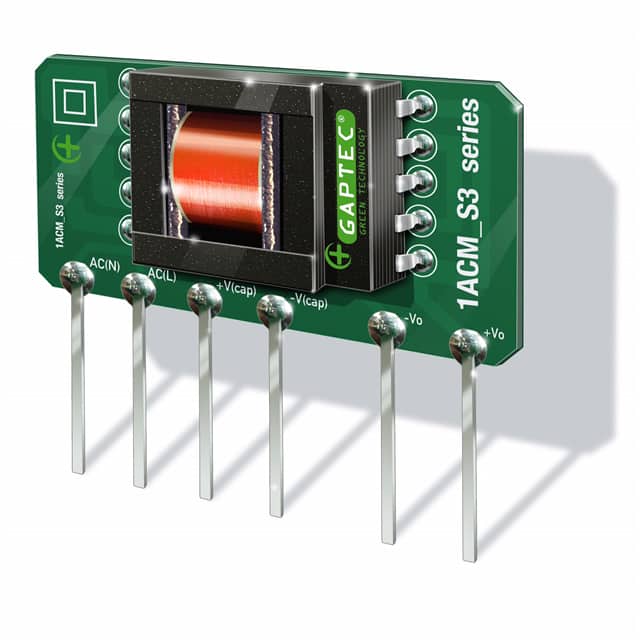

The GAPTEC Electronic 1ACM_09S3 is a 1 Watt AC-DC converter from the 1ACM_S3 series. This module offers a single 9V output at 111mA, with a typical efficiency of 67%. It accepts a wide input voltage range of 85-264 VAC or 70-400 VDC, making it suitable for various applications.
The converter is designed in an open frame, ultra-slim SIP package with through-hole mounting. Key electrical specifications include ±5% output voltage accuracy, ±1.5% line regulation, and ±2.5% load regulation. It also features over-current and short-circuit protection with automatic recovery.
Operating temperature ranges from -40°C to 85°C with derating. The unit is approved by CE, cURus, and UL, adhering to standard 60950-1. Its compact dimensions are 35.0mm x 11.0mm x 18.0mm.
This series is particularly suitable for industrial, electric power, instrumentation, and smart home applications where high EMC requirements are not critical. For harsh EMC environments, an external EMC application circuit must be added.
The output voltage is 9V and the output current is 111mA at full load.
The AC input range is 85-264 VAC and the DC input range is 70-400 VDC.
The operating temperature range is -40°C to 85°C with derating.
The 1ACM_09S3 is housed in a 12-SIP through-hole module with 6 leads.
It is approved to UL 60950-1 and carries CE, cURus, and UL marks.
Yes, it includes short circuit protection (SCP).
