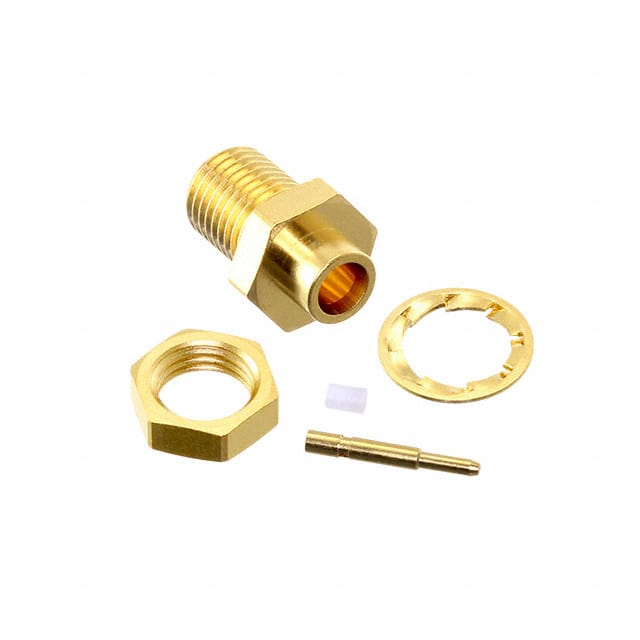

The Rosenberger 19S601-271L5 is an SMP bulkhead plug connector designed for high-frequency applications up to 26.5 GHz. It features a male pin contact, straight configuration, and 50 Ohm impedance. The connector uses a snap-on fastening type with limited detent for secure mating.
Electrical performance includes return loss of at least 30 dB from DC to 4 GHz, 20 dB from 4 to 12 GHz, and 18 dB from 12 to 26.5 GHz. Insertion loss is ≤0.05 x dB up to 12 GHz. The connector is rated for a working voltage of 335 V rms and a test voltage of 500 V rms. Contact current is 1.2 A DC max.
Mechanically, the connector is panel mounted using a hexagonal flange with a front side nut. It terminates to RG-405 or UT 85 semi-rigid cable via solder on both center contact and shield. The housing is gold-plated brass, center contact is brass with AuroDur gold plating, and dielectric is PTFE. Operating temperature range is -65°C to +155°C. The connector withstands thermal shock, vibration, shock, and moisture resistance per MIL-STD-202.
The 19S601-271L5 is RoHS compliant and manufactured in Hungary. Standard packaging quantity is 300 pieces. It is suitable for use in RF test equipment, communication systems, and military/aerospace applications where reliable high-frequency performance is required.
The maximum DC contact current is 1.2 A.
The working voltage is 335 V rms, with a test voltage of 500 V rms.
It is a panel mount with a bulkhead front side nut, using a hexagonal flange.
The impedance is 50 Ohms.
The frequency range is DC to 26.5 GHz.
The operating temperature range is -65°C to +155°C.
Yes, it is RoHS compliant as verified in the datasheet.
