| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
71 pcs
|
71 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Storage Temperature |

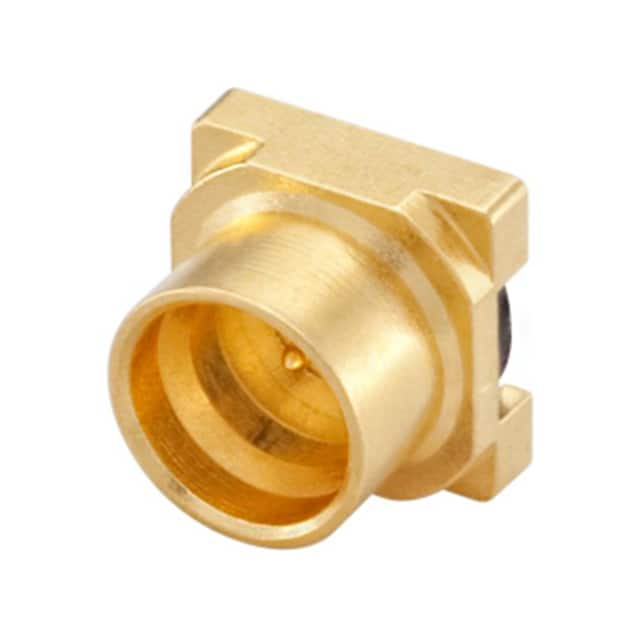

The Rosenberger 19S106-500L5 is an SMP straight plug connector designed for high-frequency RF applications up to 26.5 GHz. This single-port, male pin connector offers a characteristic 50 Ohm impedance, making it suitable for a wide range of microwave and wireless systems.
Constructed with a brass center contact and a gold-colored housing, the connector uses a snap-on coupling mechanism for quick and secure mating. The surface mount design with solder contact and shield termination facilitates efficient PCB assembly. With a single port and straight body orientation, it is ideal for board-to-board or cable-to-board interconnections in dense layouts.
This connector is commonly used in telecommunications, test equipment, and aerospace systems where reliable performance at high frequencies is required. Its compact SMP interface supports blind-mate and push-on connections, reducing installation time.
The connector is rated for a maximum frequency of 26.5 GHz.
The characteristic impedance is 50 Ohms.
The connector uses surface mount with solder termination for both contact and shield.
The fastening type is snap-on.
It is listed as RoHS3 compliant, though this is unverified.
