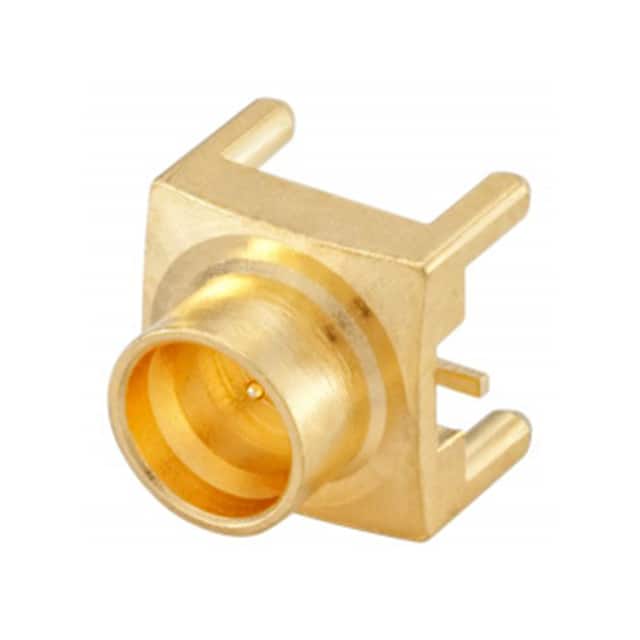

The Rosenberger 19S103-400L5 is an SMP straight plug connector designed for PCB mounting. It offers a 50 Ohm impedance and operates from DC to 26.5 GHz, making it suitable for high-frequency applications. The connector provides a return loss of at least 26 dB from DC to 6 GHz and at least 20 dB from 6 to 12 GHz. Insertion loss is specified as ≤0.05 x dB, where x is the frequency in GHz. Insulation resistance is at least 5 GΩ, with center contact resistance ≤6 mΩ and outer contact resistance ≤2 mΩ. The test voltage is 500 V rms, working voltage 335 V rms, and maximum current rating is 1.2 A DC.
Mechanically, the connector supports at least 500 mating cycles. Engagement force for the limited detent coupling is ≤45 N, disengagement force ≥9 N, and center contact captivation ≥7 N. The operating temperature range is -65°C to +155°C, with a maximum soldering temperature of +260°C for 10 seconds. The connector weighs 0.5 g.
Construction features a brass center and outer contact with AuroDur gold plating, and an LCP dielectric. The connector is terminated via through hole solder and is packaged in tape and reel. Housing color is gold. RoHS compliance is confirmed from the datasheet.
