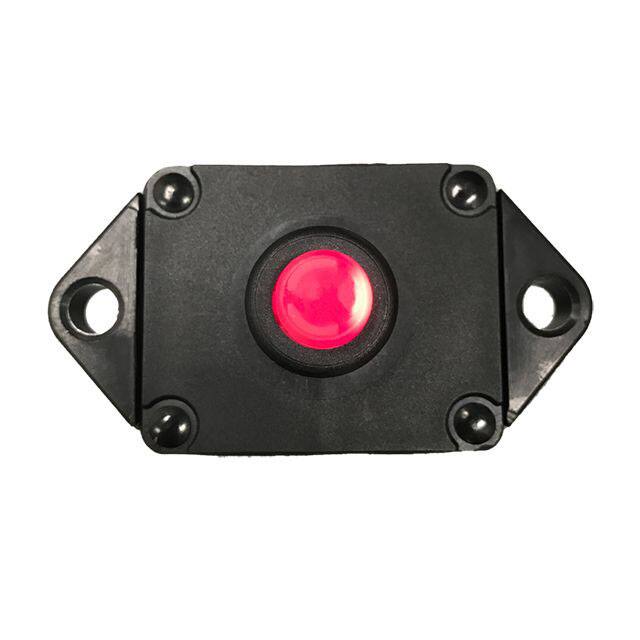

19M-P10-R-150-02 This Mechanical Products 19M-P10-R-150-02 is a thermal circuit breaker with a 150A current rating and 30V DC voltage. It features a push-to-reset actuator and chassis mount.
Mfr Part #:

19M-P10-R-150-02

Mfr Name: Mechanical Products
Mechanical Products
This Mechanical Products 19M-P10-R-150-02 is a thermal circuit breaker with a 150A current rating and 30V DC voltage. It features a push-to-reset actuator and chassis mount.
Stock on Request

19M-P10-R-150-02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

19M-P10-R-150-02 Description

Short technical summary and product information.

The Mechanical Products 19M-P10-R-150-02 is a thermal circuit breaker designed for reliable circuit protection. It features a robust chassis mount design and a push-to-reset actuator for ease of use.



With a current rating of 150A and a DC voltage rating of 30V, this single-pole breaker is suitable for various applications requiring significant current handling. The thermal breaker type ensures protection against overcurrent conditions.



This circuit breaker is illuminated with a red indicator and boasts an IP69K rating, signifying high protection against dust and high-pressure water jets, making it suitable for demanding environments. It is approved by ABYC, SAE J1625, and UL1077 standards.



The component is housed in a box package and is RoHS3 compliant.

19M-P10-R-150-02 Quick Information

Product Type: Circuit Breaker
Series: 19
Canonical Name: Mechanical Products 19M-P10-R-150-02 Thermal Circuit Breaker
Subcategory: Thermal

19M-P10-R-150-02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

19M-P10-R-150-02 Features

  • Thermal circuit breaker with 150A rating.
  • Rated for 30V DC operation.
  • Chassis mount design for secure installation.
  • Push-to-reset actuator for convenience.
  • IP69K rated for harsh environments.

19M-P10-R-150-02 Applications

  • Suitable for high current applications.
  • Ideal for demanding environmental conditions.
  • Used in systems requiring circuit protection.
  • Compliant with marine and industrial standards.

19M-P10-R-150-02 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 19M-P10-R-150-02?

150A.

What is the voltage rating?

30V DC.

What is the mounting style?

Chassis mount.

How is the breaker reset?

Push to reset.

How many poles does it have?

1 pole.

What is the IP rating?

IP69K.

What approvals does it have?

ABYC, SAE J1625, UL1077.
