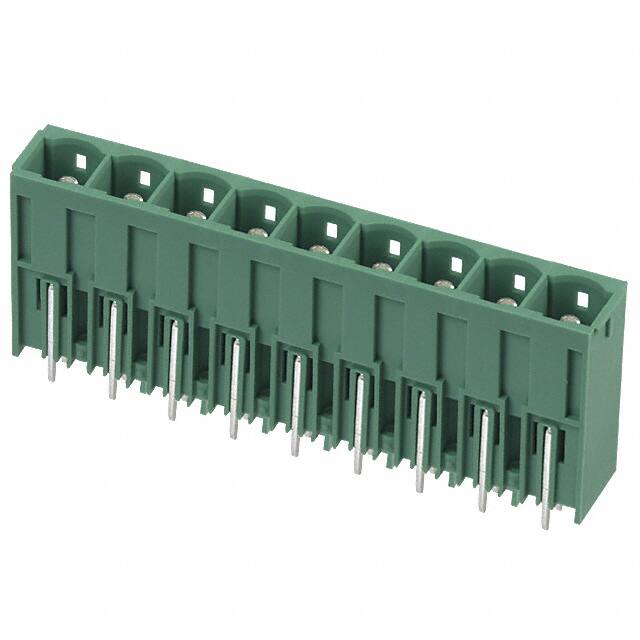

1998852 Terminal block header, 9 positions, 10.16mm pitch, vertical orientation, through hole solder termination, rated 76A at 1000V.
Mfr Part #:

1998852

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block header, 9 positions, 10.16mm pitch, vertical orientation, through hole solder termination, rated 76A at 1000V.
✓ Total Stock: 45 pcs

1998852 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1998852 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1998852 Description

Short technical summary and product information.

This is a 9-position shrouded header from the Phoenix Contact PCV 6-16 series. It features a 10.16mm pitch, vertical orientation, and through hole mounting with solder termination. The header is rated for 76A nominal current and 1000V nominal voltage per the datasheet, with rated surge voltages up to 8kV depending on overvoltage category. The insulating material is polyamide (PA) with a flammability class of UL 94 V0, and the contact mating finish is silver. The green housing provides clear visual identification. The pin dimensions are 1 x 1.2mm, and the required hole diameter is 1.7mm. The overall length is 13.4mm, height is 34mm, and the dimension a (center-to-center of first and last positions) is 81.28mm. The standard package quantity is 50 pieces per pack.

1998852 Quick Information

Product Type: Terminal Block Header
Series: PCV 6-16/ 9-G1-10,16
Canonical Name: Phoenix Contact PCV 6-16/9-G1-10,16 Header, 9 Positions, 10.16mm Pitch, Vertical, Through Hole
Subcategory: Terminal Block Headers

1998852 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1998852 Features

  • 9 positions with 10.16mm pitch.
  • Vertical orientation, through hole mounting.
  • Rated 76A at 1000V nominal.
  • Shrouded header for secure connections.
  • UL 94 V0 flammability rated.

1998852 Applications

  • Ideal for power distribution in industrial controls.
  • Used in high-current terminal block assemblies.
  • Suitable for PCB mounting in control cabinets.
  • Common in renewable energy systems.

1998852 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

9 positions.

What is the pitch of this header?

10.16mm.

What is the current rating?

76A nominal (derated to 41A when used with PC 6 plug).

What is the voltage rating?

1000V nominal (600V under CUL/UL certifications).

What is the mounting type?

Through hole, solder termination.

What is the contact mating finish?

Silver.

What is the flammability rating?

UL 94 V0.
