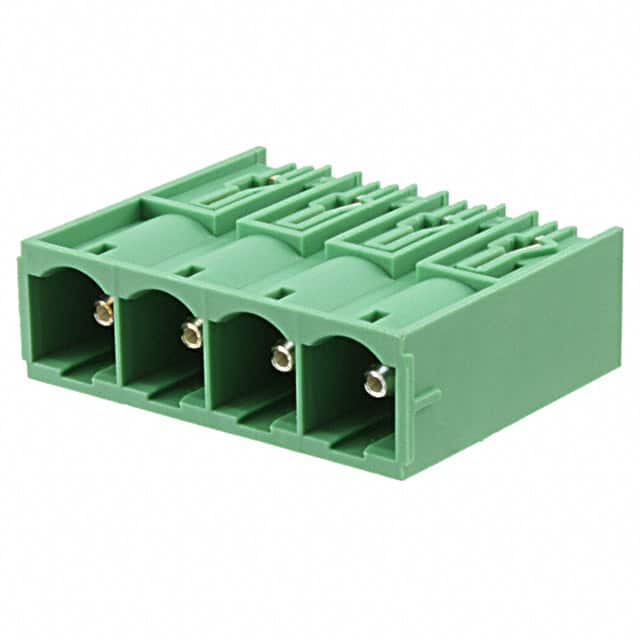

1996252 Phoenix Contact 1996252 is a 4-position, 10.16mm pitch terminal block header with male pins, shrouded on 4 sides. Rated for 76A and 1000V.
Mfr Part #:

1996252

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1996252 is a 4-position, 10.16mm pitch terminal block header with male pins, shrouded on 4 sides. Rated for 76A and 1000V.
✓ Total Stock: 12 pcs

1996252 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1996252 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Header Orientation
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Width
View Similar Products (0)

1996252 Description

Short technical summary and product information.

The Phoenix Contact 1996252 is a terminal block header from the PC 6-16 series, designed for reliable power distribution in industrial applications. It features 4 positions with a 10.16mm pitch, accommodating high current and voltage requirements.



This header is rated for a nominal current of 76A and a rated voltage of 1000V (III/2), with a rated surge voltage of 8kV. The insulating material is PA with a V0 flammability rating per UL 94. The contact mating finish is silver, ensuring good conductivity and corrosion resistance.



The component is a through-hole mount with solder termination, and its right-angle, under-board orientation allows for space-efficient PCB layouts. The green color aids in visual identification. Dimensions include a length of 34mm, width of 43.68mm, and height of 17.4mm.

1996252 Quick Information

Product Type: Terminal Block Header
Series: PC 6-16
Canonical Name: Phoenix Contact PC 6-16/ 4-G1U-10,16 Header, Male Pins, Shrouded (4 Side)
Subcategory: Terminal Block Headers

1996252 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1996252 Features

  • 4 positions with 10.16mm pitch.
  • Rated for 76A and 1000V.
  • Through-hole solder mounting.
  • Green PA insulating material.
  • Shrouded header with silver contacts.

1996252 Applications

  • Power distribution in industrial control panels.
  • High-current PCB-to-wire connections.
  • Used in automation and machinery equipment.

1996252 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1996252 header have?

It has 4 positions.

What is the pitch of the 1996252 header?

The pitch is 10.16mm.

What is the current rating of the 1996252?

The nominal current is 76A (41A in combination with PC 6 plug).

What is the voltage rating of the 1996252?

The rated voltage (III/2) is 1000V.

What is the mounting type for the 1996252?

It is a through-hole mount with solder termination.

What is the color of the 1996252 header?

The color is green.

What is the flammability rating of the 1996252?

It has a V0 rating per UL 94.
