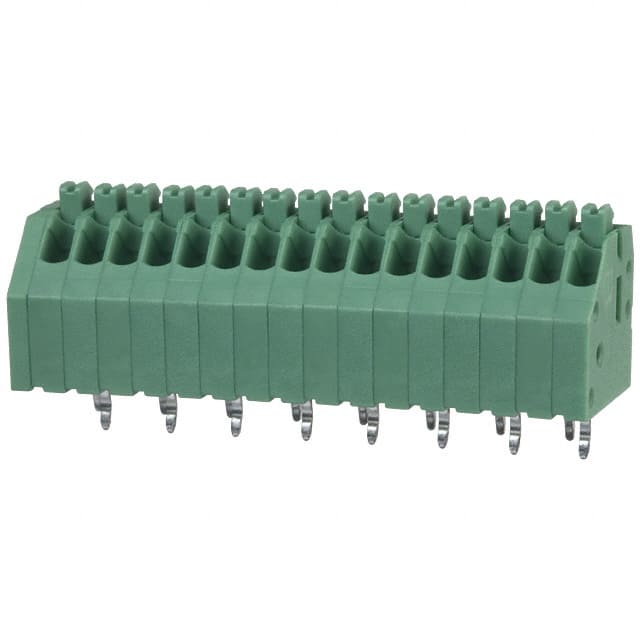

1990148 16-position wire-to-board terminal block from Phoenix Contact with 2.5mm pitch, 45° angled spring cage connection, and offset solder pins for through-hole mounting.
Mfr Part #:

1990148

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
16-position wire-to-board terminal block from Phoenix Contact with 2.5mm pitch, 45° angled spring cage connection, and offset solder pins for through-hole mounting.
✓ Total Stock: 8 pcs

1990148 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1990148 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Industrial Grade
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1990148 Description

Short technical summary and product information.

The Phoenix Contact 1990148 is a 16-position wire-to-board terminal block from the COMBICON PTSA series. It features a 2.5mm pitch and a 45° (135°) mating orientation, with screwless spring cage (tension clamp) wire termination. The through-hole mounting uses offset Z-pins to increase voltage isolation. Electrically, it is rated for 2 A and 300 V, and accepts wire gauges from 20 to 26 AWG. The housing is green. Typical applications include lighting engineering and telecommunications, especially where space is limited. The compact design and offset pins make it suitable for dense PCB layouts.

1990148 Quick Information

Product Type: PCB Terminal Block
Series: PTSA 0,5/...-2,5-Z
Canonical Name: Phoenix Contact 1990148 PTSA 0,5/16-2,5-Z Terminal Block, 16 Positions, 2.5mm Pitch, 45° Mating Orientation
Subcategory: Wire to Board Terminal Block

1990148 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1990148 Features

  • 16 positions with 2.5mm pitch.
  • 45° (135°) angled spring cage connection.
  • Offset Z-pins for increased voltage rating.
  • Screwless spring cage termination for 20-26 AWG.
  • Rated 2A and 300V.

1990148 Applications

  • Ideal for space-constrained PCB layouts.
  • Suitable for lighting engineering applications.
  • Used in telecommunications equipment.
  • Common in industrial control systems.

1990148 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

16 positions.

What is the pitch?

2.5 mm.

What is the current rating?

2 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole.

What wire termination method is used?

Screwless spring cage, tension clamp.

What wire gauge is accepted?

20-26 AWG.
