| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,690 pcs
|
2690 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Hole Diameter | |
| Insulating Material Group | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pin Dimensions | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

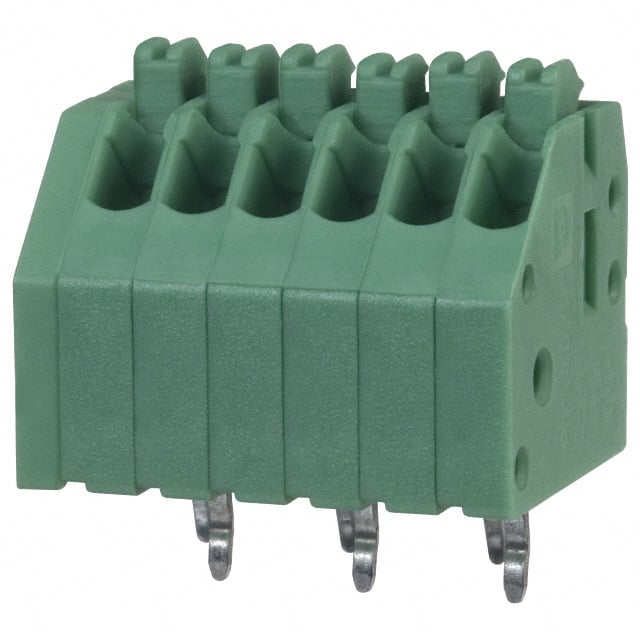

The Phoenix Contact 1990041 is a 6-position PCB terminal block from the COMBICON PTSA series. It features a 2.5mm pitch and a screwless spring-cage (tension clamp) wire termination, accepting 20-26 AWG solid or stranded conductors. The mating orientation is 45° (135°) angle with the board, facilitating space-saving wiring in compact designs.
Electrically, the terminal block is rated for 2A continuous current and 300V voltage (with rated surge voltage of 2.5 kV). The insulating material group is I. The through-hole mounting with offset solder pins (0.4 x 0.75 mm pin dimensions, 1 mm hole diameter) ensures reliable PCB attachment.
Typical applications include lighting engineering and telecommunications, where space is critical. The green housing allows easy identification. This part is RoHS3 compliant and has an MSL of 1 (unlimited).
It has 6 positions (1 level).
The pitch is 2.50 mm.
Rated 2 A current and 300 V voltage (surge voltage 2.5 kV).
Screwless spring-cage (tension clamp) termination.
Accepts 20-26 AWG wire.
Through-hole mounting with offset solder pins.
45° (135°) angle with the board.
