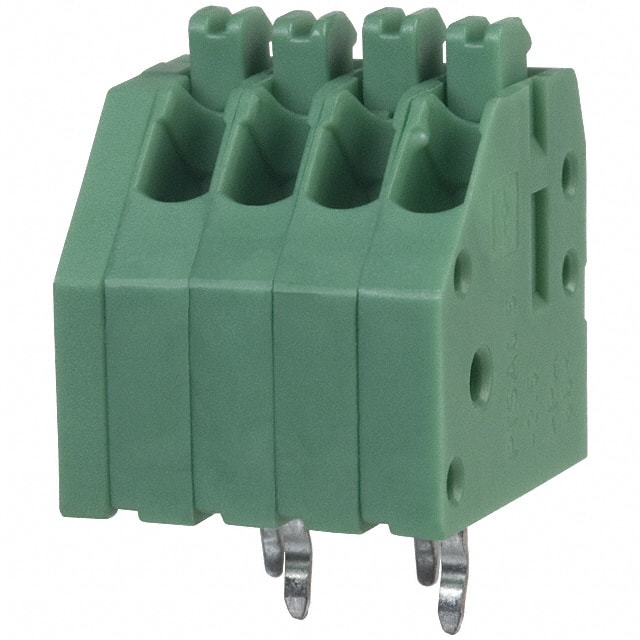

1990025 Phoenix Contact 1990025 is a 4-position PCB terminal block with 2.5mm pitch, featuring a screwless spring cage termination and a 45° mating orientation.
Mfr Part #:

1990025

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1990025 is a 4-position PCB terminal block with 2.5mm pitch, featuring a screwless spring cage termination and a 45° mating orientation.
✓ Total Stock: 71 pcs

1990025 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Spartce Electronics. ✓
Non-Authorised Inventory information
51 pcs
On Request
51 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1990025 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Hole Diameter
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1990025 Description

Short technical summary and product information.

The Phoenix Contact 1990025 is a 4-position PCB terminal block from the PTSA 0,5/...-2,5-Z series, part of the COMBICON compact family. It features a screwless spring cage (tension clamp) wire termination, accepting solid or stranded conductors from 20 to 26 AWG (0.5 mm² cross section). The block is rated for 2 A current and 300 V voltage, with a 2.5 mm pitch.



This terminal block uses a through-hole mounting style with offset solder pins (Z-pinning) and a 45° (135°) mating orientation relative to the board, making it suitable for space-constrained applications. The housing is green and uses insulating material group I. The standard package quantity is 250 pieces.



Typical applications include lighting engineering and telecommunications, where compact dimensions and reliable spring-cage connections are required. The PTSA range allows intermixing of pitches and use of pitch spacers for customized termination blocks.

1990025 Quick Information

Product Type: PCB Terminal Block
Series: PTSA 0,5/...-2,5-Z
Canonical Name: Phoenix Contact PTSA 0,5/4-2,5-Z PCB Terminal Block, 4 Positions, 2.5mm Pitch, Screwless Spring Cage
Subcategory: Wire-to-Board

1990025 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1990025 Features

  • 4 positions with 2.5mm pitch.
  • Screwless spring cage wire termination.
  • Rated for 2A current and 300V voltage.
  • Through-hole mounting with 45° orientation.
  • Accepts 20-26 AWG solid or stranded wire.

1990025 Applications

  • Ideal for lighting engineering applications.
  • Suitable for telecommunications equipment.
  • Used in space-constrained PCB designs.
  • Works with custom termination block assemblies.

1990025 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1990025 terminal block have?

It has 4 positions (1 level).

What is the pitch of the Phoenix Contact 1990025?

The pitch is 2.50 mm.

What is the current rating of the 1990025 terminal block?

The current rating is 2 A.

What is the voltage rating of the 1990025?

The voltage rating is 300 V.

What mounting type does the 1990025 use?

It uses through-hole mounting.

What wire gauge is compatible with the 1990025?

It accepts 20-26 AWG wire.

What type of wire termination does the 1990025 use?

It uses a screwless spring cage (tension clamp) termination.
