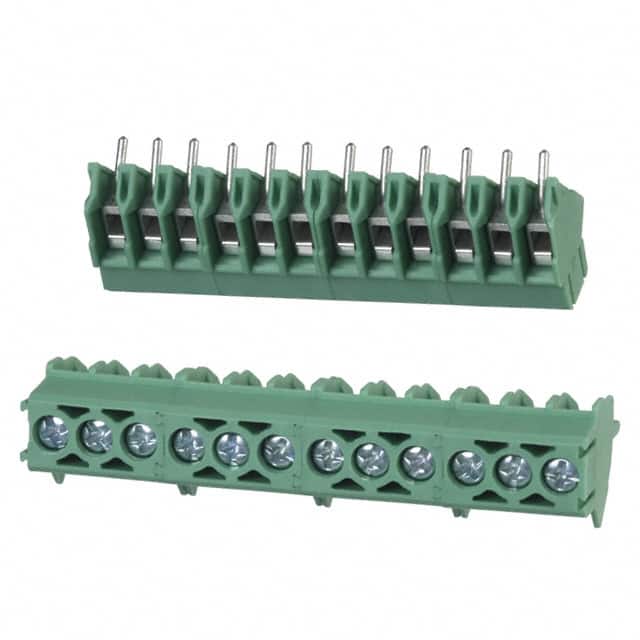

1989052 Phoenix Contact 1989052 is a 12-position PCB screw terminal block with 3.5 mm pitch, rated 10 A and 300 V. It features a 45° mating orientation and through-hole mounting.
Mfr Part #:

1989052

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1989052 is a 12-position PCB screw terminal block with 3.5 mm pitch, rated 10 A and 300 V. It features a 45° mating orientation and through-hole mounting.
✓ Total Stock: 5,349 pcs

1989052 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5,349 pcs
On Request
5349 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1989052 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Features
Industrial Grade
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1989052 Description

Short technical summary and product information.

The Phoenix Contact 1989052 is a PCB screw terminal block from the COMBICON PT series. It offers 12 positions with a 3.5 mm pitch and is designed for wire-to-board connections. The terminal block uses a reliable screw termination method and accepts wire gauges from 16 to 26 AWG (solid and stranded conductors 0.2 - 1.5 mm²).



Rated at 10 A and 300 V, this component also meets IEC/EN standards with a rated voltage of 160 V (category III/3) and a rated surge voltage of 2.5 kV. The nominal current per IEC/DIN VDE is 17.5 A at 1.5 mm² cross section.



The block features a 45° (135°) mating orientation relative to the PCB and includes side interlocking for secure multi-position assembly. It is housed in a green thermoplastic and mounts via through-hole pins. This part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

1989052 Quick Information

Product Type: PCB Screw Terminal Block
Series: PT 1,5/...-3,5-H
Canonical Name: Phoenix Contact PT 1,5/12-3,5-H PCB Screw Terminal Block, 12 Positions, 3.5 mm Pitch, 45° Mating Orientation
Subcategory: Wire-to-Board Terminal Block

1989052 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: Non-Compliant

1989052 Features

  • 12 positions with 3.5 mm pitch.
  • Screw termination for secure wire connection.
  • Rated 10 A and 300 V.
  • 45° mating orientation to PCB.
  • Side interlocking for multi-block assembly.

1989052 Applications

  • Industrial control panel wiring.
  • Building automation and HVAC systems.
  • Power supply and distribution boards.
  • PLC and I/O module connections.

1989052 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1989052 terminal block have?

It has 12 positions.

What is the pitch of the Phoenix Contact 1989052?

The pitch is 3.5 mm.

What is the current and voltage rating of the 1989052?

It is rated for 10 A and 300 V.

What mounting type does the 1989052 use?

It uses through-hole mounting.

What wire gauge is compatible with the 1989052?

It accepts 16 to 26 AWG wire.

What is the mating orientation of this terminal block?

The mating orientation is 45° (135°) angle with the board.

Is the 1989052 RoHS compliant?

Yes, it is listed as RoHS3 compliant.
