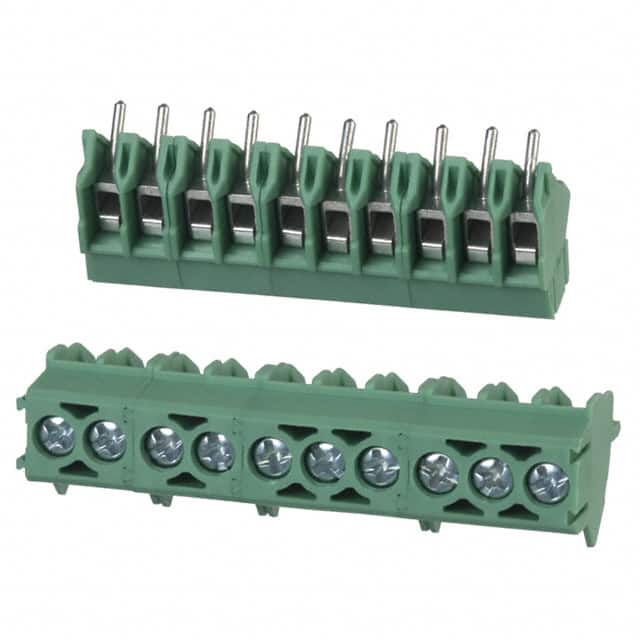

1989036 Phoenix Contact 1989036 is a 10-position, single-level PCB screw terminal block with a 3.5mm pitch and 45° mating orientation.
Mfr Part #:

1989036

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1989036 is a 10-position, single-level PCB screw terminal block with a 3.5mm pitch and 45° mating orientation.
✓ Total Stock: 35 pcs

1989036 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
35 pcs
On Request
35 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1989036 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Industrial Grade
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1989036 Description

Short technical summary and product information.

The Phoenix Contact 1989036 is a printed circuit screw termination block from the COMBICON PT series. It features 10 positions arranged in a single level with a compact 3.5mm pitch (0.138 inches). The wire termination uses a proven screw connection, accommodating solid and stranded wires from 26 to 16 AWG (0.2 to 1.5 mm²). The through-hole mounting type and 45° (135°) angle with board mating orientation make it suitable for space-constrained PCB layouts.



Electrical ratings include a current rating of 10 A (UL) and 17.5 A (IEC), with a voltage rating of 300 V (UL) and 160 V (IEC category III/3). The block is rated for a surge voltage of 2.5 kV and has an insulating material group I. The housing is green and features side interlocking for secure multi-block assembly.



This terminal block is designed for wire-to-board applications where reliable screw termination and compact dimensions are required. The PT 1,5/10-3,5-H is part of the COMBICON compact family, known for its generous clamping space and versatility in industrial and commercial electronic equipment.

1989036 Quick Information

Product Type: Wire to Board Terminal Block
Series: PT 1,5/10-3,5-H
Canonical Name: Phoenix Contact PT 1,5/10-3,5-H Printed Circuit Screw Termination Block
Subcategory: Wire to Board

1989036 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1989036 Features

  • 10 positions, 3.5mm pitch, single level.
  • Screw termination for 16-26 AWG wire.
  • Compact green housing with side interlocking.
  • 45° (135°) mating orientation for angled wiring.
  • Rated 10 A / 300 V (UL) and 17.5 A (IEC).

1989036 Applications

  • Ideal for wire-to-board connections in industrial controls.
  • Suitable for space-constrained PCB layouts.
  • Used in power distribution and signal interface circuits.

1989036 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

This terminal block has 10 positions (single level).

What is the pitch of this terminal block?

The pitch is 3.5 mm (0.138 inches).

What is the current rating of the 1989036?

The UL current rating is 10 A. The IEC rated current is 17.5 A at 1.5 mm² cross section.

What is the voltage rating?

The UL voltage rating is 300 V. The IEC rated voltage is 160 V for category III/3.

What type of mounting does this terminal block use?

It uses through-hole mounting on a printed circuit board.

What wire sizes are compatible?

It accepts solid and stranded wire from 26 to 16 AWG (0.2 - 1.5 mm²).

Is this terminal block RoHS compliant?

The RoHS status is listed as 'RoHS3 Compliant' but this information is unverified. Confirm with manufacturer.
