| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connection Capacity Solid | |
| Connection Capacity Stranded | |
| Current | |
| Current Rating | |
| Features | |
| Hole Diameter | |
| Insulating Material Group | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Nominal Current (Datasheet) | |
| Number of Levels | |
| Pin Diameter | |
| Pitch | |
| Positions Per Level | |
| Rated Voltage (IEC) | |
| Standard Package Quantity | |
| Surge Voltage Category / Contamination Class | |
| Termination Style | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

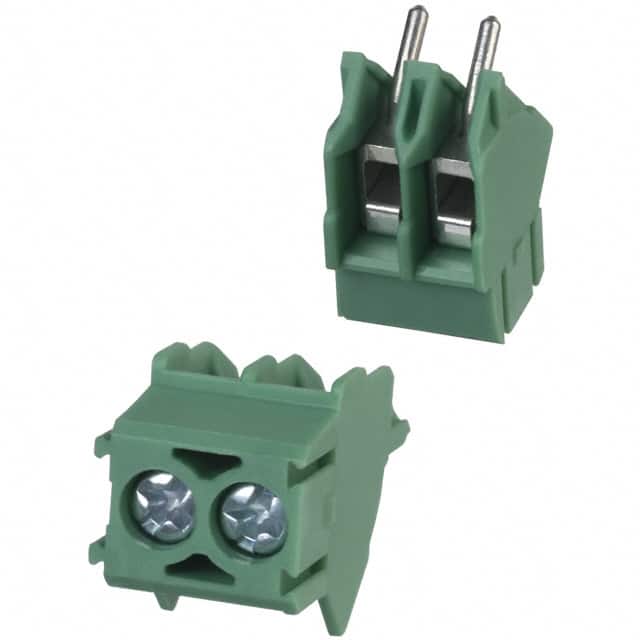

The Phoenix Contact 1988956 (PT 1,5/2-3,5-H) is a compact PCB screw terminal block from the COMBICON PT series. It features 2 positions with a 3.5mm pitch and a 45° (135°) angle mating orientation relative to the board, enabling space-efficient wiring in constrained layouts.
The terminal block uses a proven screw connection for wire termination, accepting solid and stranded conductors from 0.2-1.5 mm² (16-26 AWG). It is rated for a nominal current of 17.5 A per the datasheet and a rated voltage range of 160/200/400 V depending on surge voltage category and contamination class (III/3, III/2, II/2).
The through-hole mounting and side interlocking feature allow secure stacking of multiple blocks. The green insulating material belongs to group I. The unit is RoHS3 compliant and has an MSL of 1 (unlimited). Standard packaging is 250 pieces per packet.
3.50 mm
2 positions
Nominal current per datasheet is 17.5 A; the existing product data lists 10 A.
Rated voltage per IEC is 160/200/400 V depending on surge voltage category and contamination class (III/3, III/2, II/2).
Through hole mounting.
