| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Conductor Cross Section (Solid) | |
| Conductor Cross Section Flexible | |
| Country of Origin | |
| Current | |
| Customs Tariff Number | |
| Features | |
| Flammability Class | |
| Industrial Grade | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Maximum Load Current | |
| Medical Grade | |
| Military Grade | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Packing Unit | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| Rated Voltage (III/3) | |
| Screw Thread | |
| Solder Pin Surface | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| Voltage | |
| Weight | |
| Wire Gauge | |
| Wire Gauge Range | |
| Wire Termination |

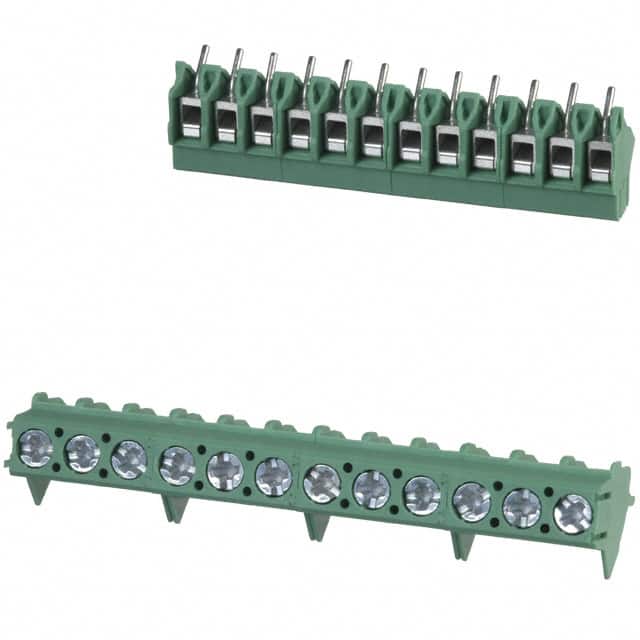

The Phoenix Contact 1988901 is a PCB terminal block from the PTA 1,5 series, featuring 12 positions with a 5 mm pitch. It uses a screw connection method and is designed for through-hole soldering mounting. The conductor/PCB connection direction is 45°, allowing for angled wire entry.
Electrically, it has a nominal current rating of 17.5 A and a nominal voltage of 400 V, with a maximum load current of 24 A. It accepts solid or flexible conductors from 0.14 mm² to 2.5 mm² (26 AWG to 14 AWG). The insulating material is polyamide (PA) with a flammability class of UL 94 V0.
Mechanical features include M2.6 screw threads with a tightening torque of 0.35 Nm to 0.4 Nm, a stripping length of 5 mm, and side interlocking for multi-position assembly. The solder pin surface is tin (Sn). The part is green in color and weighs 12.8 g.
It has 12 positions.
The pitch is 5 mm.
The nominal current is 17.5 A, with a maximum load current of 24 A.
The nominal voltage is 400 V (III/2), with ratings of 250 V (III/3) and 630 V (II/2).
It uses through-hole soldering mounting.
It accepts 26 AWG to 14 AWG solid or flexible conductors.
The tightening torque is 0.35 Nm to 0.4 Nm.
