| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,180 pcs
|
2180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (Solid) | |
| Conductor Cross Section Flexible | |
| Country of Origin | |
| Current | |
| Current Rating | |
| Custom Tariff Number | |
| Dimension a | |
| Features | |
| Flammability Rating | |
| Hole Diameter | |
| Industrial Grade | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Maximum Load Current | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Packing Unit | |
| Pin Diameter | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage | |
| Screw Thread | |
| Solder Pin Surface | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| Voltage | |
| Voltage Rating | |
| Weight | |
| Wire Gauge | |
| Wire Termination |

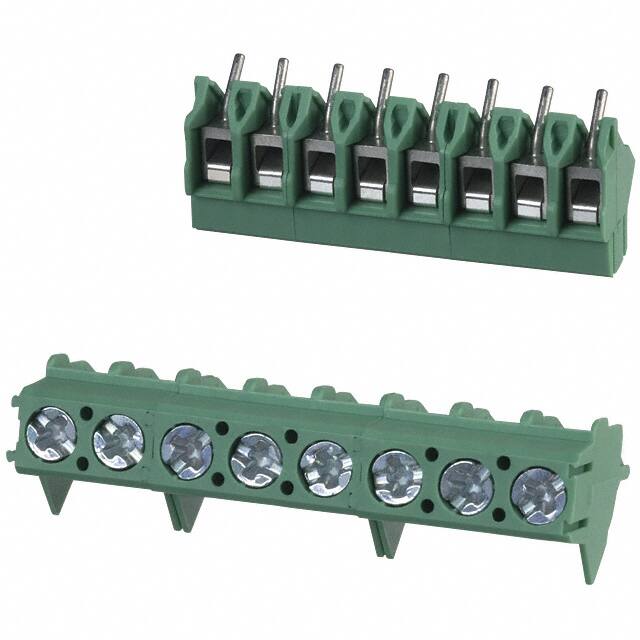

The Phoenix Contact 1988862 is a PCB terminal block from the PTA 1,5 series, featuring 8 positions with a 5mm pitch. It uses a screw connection method and mates at a 45° (135°) angle to the board, making it suitable for space-constrained layouts.
Electrically, it is rated for a nominal current of 17.5A and a maximum load current of 24A. The rated voltage is 400V (III/2) with a rated surge voltage of 4kV. It accepts solid and flexible conductors from 0.14 to 2.5 mm² (14-26 AWG).
The terminal block is housed in green PA insulating material with a UL 94 V0 flammability rating. It is a through-hole mount component with tin-plated solder pins. The screw thread is M2.6 with a tightening torque of 0.35-0.4 Nm and a stripping length of 5mm.
It has 8 positions.
The pitch is 5.00mm.
The nominal current is 17.5A, with a maximum load current of 24A.
The rated voltage is 400V (III/2) with a rated surge voltage of 4kV.
It is a through-hole mount component.
It accepts 14-26 AWG solid or flexible conductors.
The insulating material is PA with a UL 94 V0 flammability rating.
