| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Country of Origin | |
| Current | |
| Current Rating | |
| Custom Tariff Number | |
| Features | |
| Hole Diameter | |
| Inflammability Class UL 94 | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Maximum Load Current | |
| Minimum Order Quantity | |
| Mounting Type | |
| Nominal Cross Section | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Packing Unit | |
| Pin Dimensions | |
| Pitch | |
| Positions Per Level | |
| Rated Surge Voltage (II/2) | |
| Rated Surge Voltage (III/2) | |
| Rated Surge Voltage (III/3) | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| Rated Voltage (III/3) | |
| Screw Thread | |
| Solder Pin Surface | |
| Storage Temperature | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| UL 94 | |
| Voltage | |
| Voltage Rating | |
| Weight per Piece | |
| Wire Gauge | |
| Wire Termination |

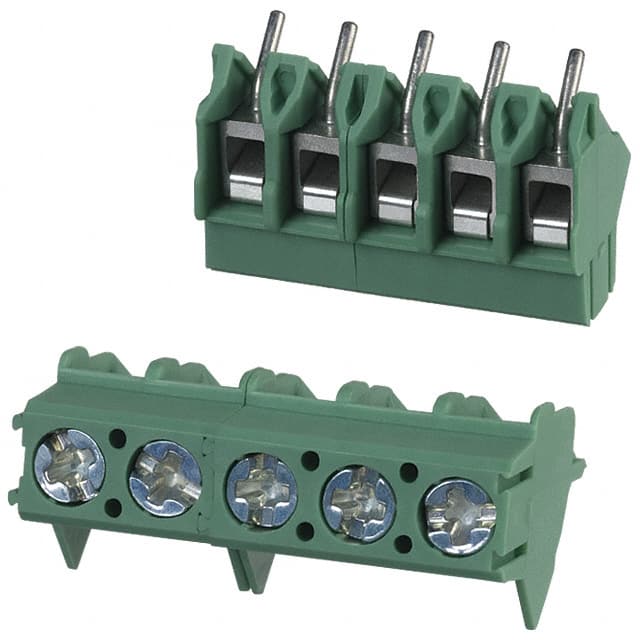

The Phoenix Contact 1988833 (PTA 1,5/5-5,0) is a 5-position PCB terminal block with a 5.00mm pitch, designed for wire-to-board connections. It uses a screw termination method with a 45° (135°) mating orientation relative to the PCB, enabling space-efficient layouts. The terminal block is rated for 15A (nominal 17.5A) and 300V (nominal 400V) with a wire range of 12-26 AWG. It accommodates solid conductors up to 2.5mm² and features a stripping length of 5mm. The screw thread is M2.6 with a tightening torque of 0.35-0.4 Nm. The housing is made of green PA (polyamide) insulating material with a UL 94 V0 flammability rating. The solder pins are tin-plated with a 1.0mm diameter and fit 1.3mm PCB holes. The part includes side interlocking for multi-pole assembly. It is through-hole mounted and soldered to the PCB. The packing unit is 1 piece with a minimum order quantity of 100 pieces. Country of origin is Greece.
5 positions.
5.00mm.
15A (nominal 17.5A).
300V (nominal 400V).
Through hole.
12-26 AWG.
0.35 to 0.4 Nm.
