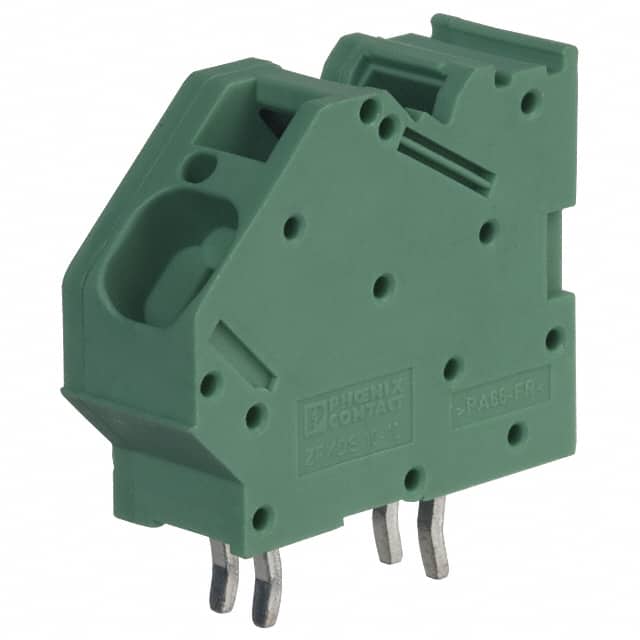

1987054 Phoenix Contact 1987054 is a 1-position wire-to-board terminal block rated for 65 A and 600 V. It accepts 6-24 AWG wire with a screwless spring cage termination and mounts through hole at a 45° angle.
Mfr Part #:

1987054

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1987054 is a 1-position wire-to-board terminal block rated for 65 A and 600 V. It accepts 6-24 AWG wire with a screwless spring cage termination and mounts through hole at a 45° angle.
✓ Total Stock: 8 pcs

1987054 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1987054 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Features
Mating Orientation
Mounting Type
Number of Levels
Positions Per Level
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

1987054 Description

Short technical summary and product information.

The Phoenix Contact 1987054 is a single-position wire-to-board terminal block designed for high-current applications. It features a through-hole mounting with a 45° (135°) mating orientation relative to the board.



Electrical ratings include 65 A current and 600 V voltage, accommodating wire sizes from 6 to 24 AWG. The termination uses a screwless spring cage (tension clamp) mechanism for fast and reliable wire connections without tools.



The terminal block is green in color and includes side interlocking features for ganging multiple units. This design is suitable for industrial control, power distribution, and other moderate-to-high current PCB connections.

1987054 Quick Information

Product Type: Wire to Board Terminal Block
Canonical Name: Phoenix Contact 1987054 - 1 Position Wire to Board Terminal Block, 65A, 600V, Through Hole, Screwless Spring Cage
Subcategory: Wire to Board

1987054 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1987054 Features

  • Rated 65 A and 600 V electrical.
  • Accepts 6 to 24 AWG wire.
  • Screwless spring cage termination.
  • Through-hole mounting at 45° angle.
  • Side interlocking for multi-position ganging.

1987054 Applications

  • Power supply output connections.
  • Industrial control panel wiring.
  • High-current PCB interconnect.
  • Motor drive terminal blocks.
  • Distributed power system wiring.

1987054 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of this terminal block?

The current rating is 65 A.

What is the voltage rating?

The voltage rating is 600 V.

What wire gauge does it accept?

It accepts wire from 6 AWG to 24 AWG.

What is the mounting type?

It is through-hole mounted.

Does it have a screwless termination?

Yes, it uses a screwless spring cage (tension clamp) termination.

What is the color of the terminal block?

It is green.

Can multiple units be joined together?

Yes, it features side interlocking for ganging multiple units.
